2015 Aston Martin Rapide S Wheel Interchange

OEM wheel and tire fitment specs for the 2015 Aston Martin Rapide S, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.

Recorded OEM specifications for the 2015 Aston Martin Rapide S, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.

Start a donor comparison

2015 Aston Martin Rapide S Fitment Specs

Baseline mounting dimensions used for interchange decisions.

Bolt Pattern5x128
Center Bore75.1 mm
Lug ThreadM14 x 2.00 View M14 x 2.00 options on Amazon
OEM Wheel Sizes20" – 21"
OEM Widths8.5"
OEM Offset Range42 mm

Center-bore records disagree: year-level hub 68.1 mm vs trim range 75.1–75.1 mm. Interchange below does not treat this as an unqualified match.

Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.

Donor vehicles with overlapping OEM specs

These are vehicle-year records whose recorded OEM ranges overlap this 2015 Aston Martin Rapide S. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.

Evaluated 5 donor years. Listed 5 eligible overlaps (not all evaluated years are compatible). Showing all listed.

2014, 2016–2017 Aston Martin Rapide S

Check wheel configurationCenter-bore records disagree

Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.

  • 2014
  • 2016
  • 2017
  • Bolt pattern5x128 · Same recorded PCD
  • Center bore75.1 mm · same recorded hub figure
  • Wheel geometryOEM width/offset ranges overlap (not a specific wheel)

Center-bore records disagree (target year-level hub 68.1 mm vs trim range 75.1–75.1 mm; donor year-level hub 68.1 mm vs trim range 75.1–75.1 mm). Unqualified overlap is not claimed until the conflict is resolved.

2014, 2016 Aston Martin Vanquish

Check wheel configurationCenter-bore records disagree

Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.

  • 2014
  • 2016
  • Bolt pattern5x128 · Same recorded PCD
  • Center bore75.1 mm · same recorded hub figure
  • Wheel geometryNeeds configuration check

Donor width/offset sits outside the known OEM envelope for this vehicle.

Aston Martin Rapide S Years With Compatible Wheels

Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.

Will Wheels From Another Vehicle Fit?

Compare a donor vehicle or custom wheel against this 2015 Aston Martin Rapide S. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.

Compare

Compare wheel compatibility between two vehicles

Wheels from (donor vehicle)

Installed on (your vehicle)

Selected Car:

2015 Aston Martin Rapide S

Compare Rims

Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x128
Center Bore
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
75.1 mm
Thread Size
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M14 x 2.00
Rim Diameter
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
20"
Rim Width
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
8.5"
Wheel Offset
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
42 mm
Backspacing
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-

Wheel Fitment Parts for the 2015 Aston Martin Rapide S

Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.

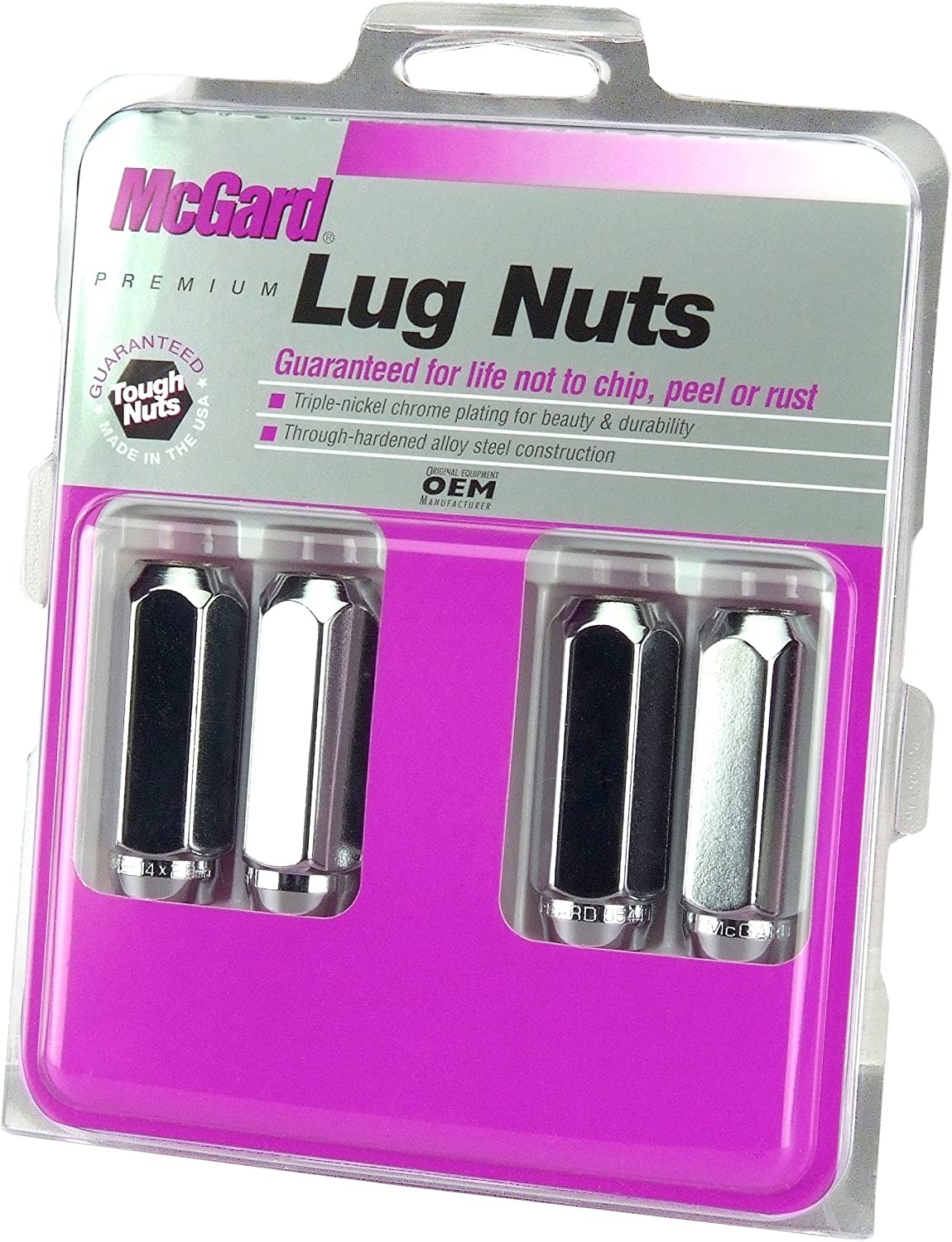

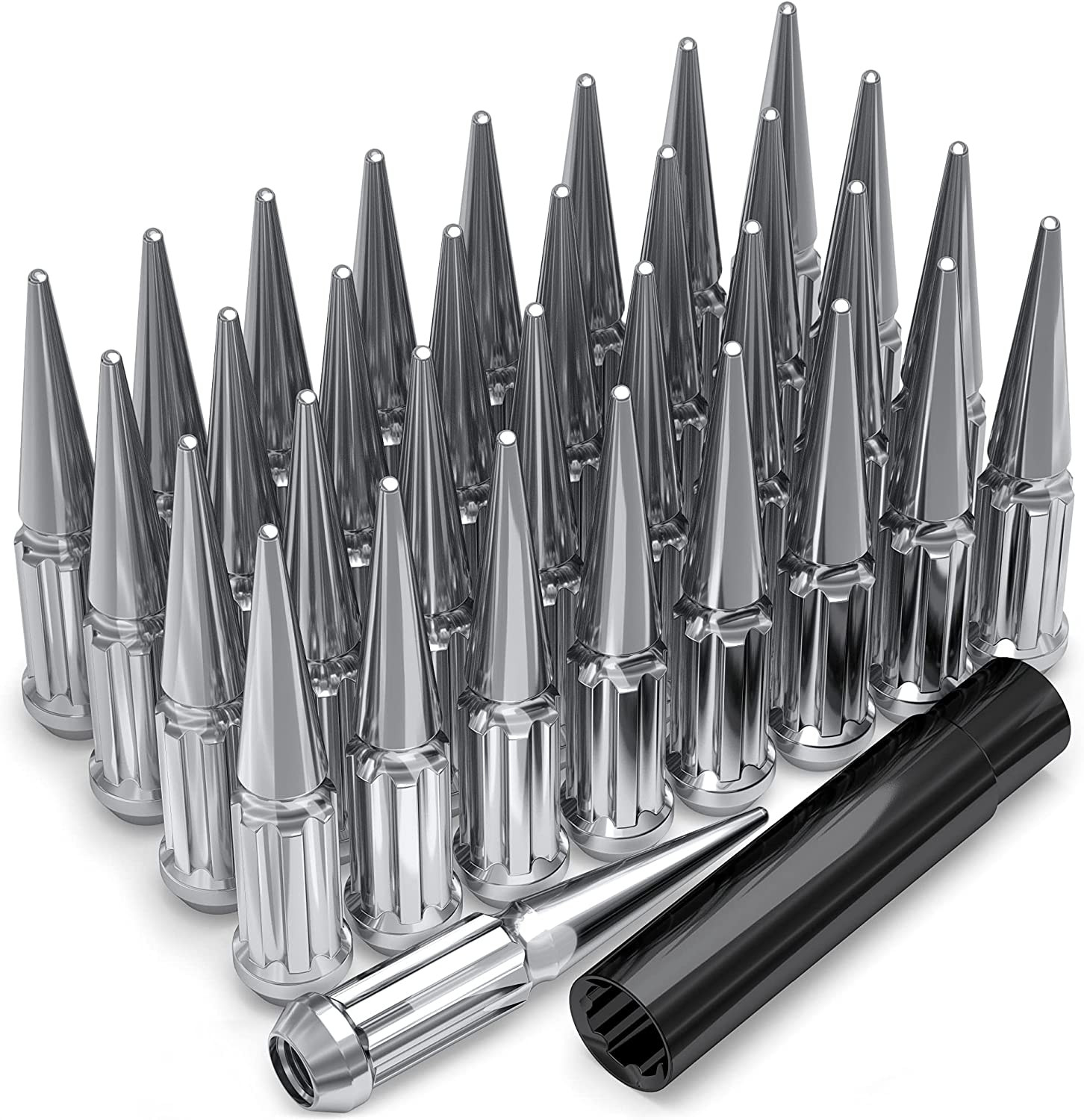

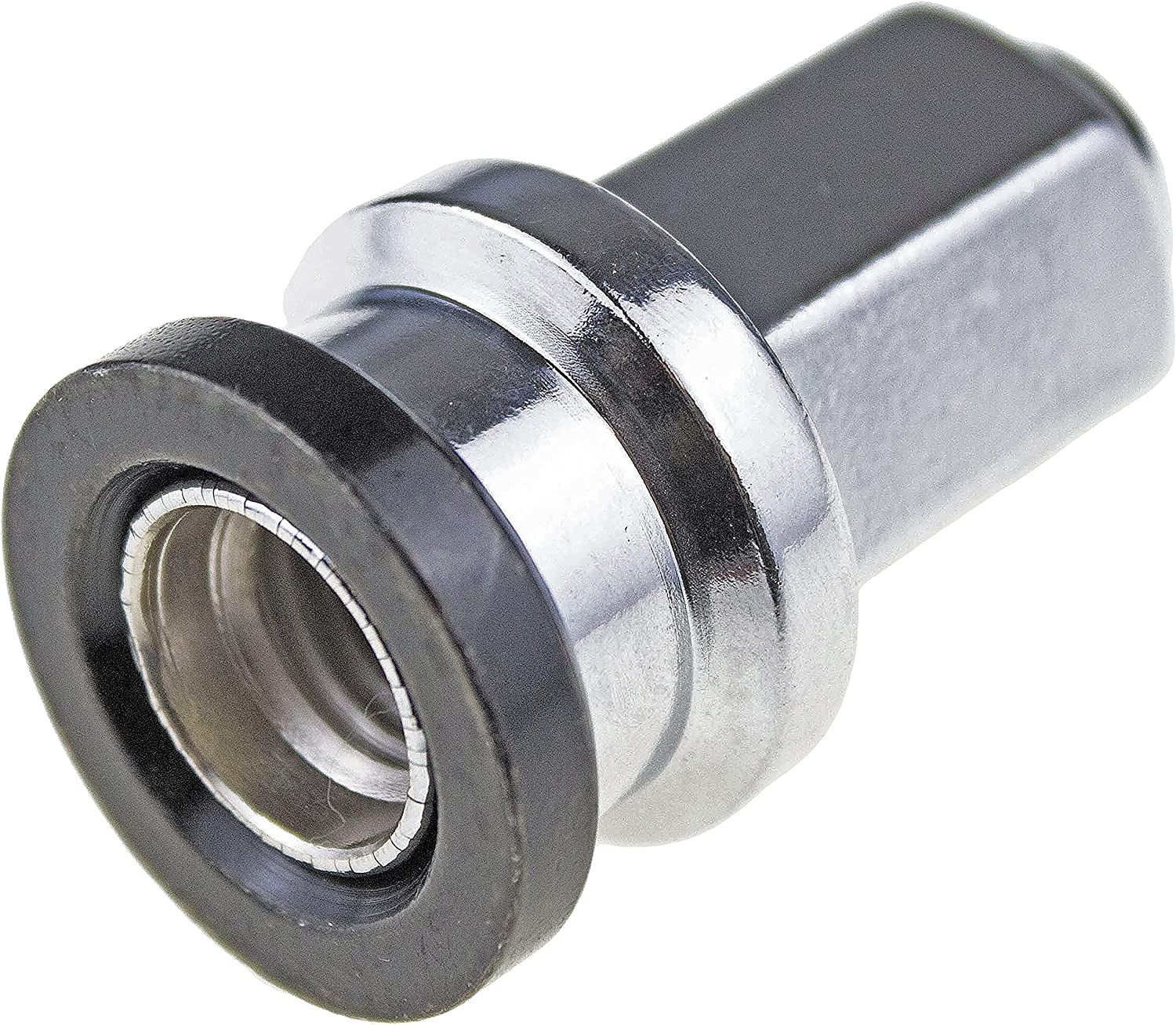

Lug Nuts / Wheel Bolts

M14 x 2.00

As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.

2015 Aston Martin Rapide S Wheel Fitment

Bolt Pattern5x128
Center Bore75.1 mm
Thread SizeM14 x 2.00
Rim Diameter20"
Rim Width8.5"
Wheel Offset42 mm

Use the calculator below to compare wheels from another vehicle against your 2015 Aston Martin Rapide S, or check compatible donor vehicles that share the same bolt pattern and center bore.

Fitment Basics

  • Always confirm center bore matches your hub, or use hub-centric rings to take up the gap.
  • Check offset carefully – wheels that stick out too far can rub on fenders or suspension components.
  • Verify thread size and lug type before buying replacement bolts or lug nuts.
  • When in doubt, use the calculator below to compare exact specs side by side.

Methodology and sources

Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:

  • Bolt pattern / PCD
  • Center bore direction (donor wheel bore must not be smaller than the hub)
  • Wheel diameter, width, and offset against known OEM ranges
  • Lug thread / hardware differences (vehicle-side hardware)

A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
