What Is a Hub-Centric Ring?
A hub-centric ring is a precision ring installed between a vehicle’s hub pilot and a wheel’s center bore. It fills the clearance when the wheel bore is larger than the vehicle hub, allowing the wheel to be centered by the hub rather than only by the wheel studs or lug nuts.
Hub-centric rings are also called hub rings or spigot rings. They are commonly used when an aftermarket or donor wheel has a center bore that is larger than the target vehicle’s hub pilot.
How a Hub-Centric Ring Works
The ring has two important diameters:
- Outer diameter: Matches the wheel’s center bore.
- Inner diameter: Matches the vehicle hub pilot.
The ring sits in the wheel’s center opening. When the wheel is installed, the vehicle hub fits into the ring’s inner diameter and the ring’s outer diameter fits into the wheel bore. This reduces excess radial clearance and helps keep the wheel centered while the lug nuts are tightened.
For example, a wheel with a 67.1 mm center bore on a vehicle with a 64.1 mm hub may use a 67.1 → 64.1 mm hub-centric ring. The first number describes the wheel-side diameter, and the second describes the vehicle-hub-side diameter.

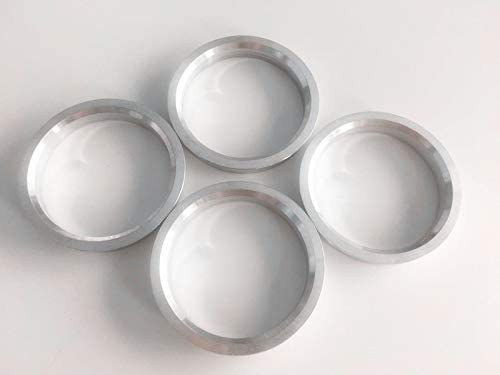

A ring may be made from plastic, composite material, or metal, depending on the application. The important requirements are accurate dimensions, proper seating, and compatibility with the wheel and hub geometry.
Why Hub-Centric Rings Matter for Wheel Fitment
A wheel that is correctly centered can reduce the chance of installation-related vibration. Without a ring, a larger-bore wheel may still be tightened securely, but it can be harder to center accurately on the hub. Small centering errors may become noticeable as steering-wheel shake or vehicle vibration, particularly at higher speeds.
A wheel that fits with the correct hub-centric rings is generally described as Fits With Hub Rings, rather than Direct Fit. The rings do not change the wheel’s bolt pattern, offset, width, diameter, or brake clearance. They only address the relationship between the wheel center bore and the vehicle hub pilot.
Hub rings can also make wheel installation more repeatable by supporting the wheel while the lug hardware is started and tightened. They do not replace the need to tighten the lug nuts using the correct vehicle or wheel manufacturer procedure.
What Hub-Centric Rings Can and Cannot Fix
Hub-centric rings are suitable only when the wheel center bore is larger than the vehicle hub pilot. They can reduce the effective wheel-bore interface, but they cannot enlarge a wheel opening.
They can help with:
- A wheel center bore larger than the vehicle hub pilot
- Centering a compatible wheel during installation
- Converting a loose-fitting hub interface into a closer hub-to-wheel fit
They cannot fix:
- A wheel center bore smaller than the vehicle hub pilot
- A different bolt pattern or PCD
- Incorrect wheel offset or excessive interference with suspension components
- Insufficient brake-caliper clearance
- Incorrect lug-seat type, thread engagement, or wheel hardware
- An unsuitable tire size or overall wheel-and-tire package
For instance, if the vehicle hub is larger than the wheel’s center bore, the wheel cannot physically pass over the hub. A hub ring cannot solve that condition. Likewise, a hub ring does not convert one bolt pattern into another; an adapter may be required for that type of change, subject to a separate fitment assessment.
How to Choose and Check a Hub-Centric Ring
Before ordering, verify the dimensions from reliable wheel and vehicle measurements:
- Measure or confirm the wheel’s center bore in millimeters.
- Measure or confirm the target vehicle’s hub-pilot diameter in millimeters.
- Select a ring with an outer diameter matching the wheel bore and an inner diameter matching the hub pilot.
- Check the ring’s seating depth and shape so it does not prevent the wheel from sitting flush against the hub.
- Confirm that the wheel’s bolt pattern, offset, width, diameter, brake clearance, and lug hardware are also suitable.
Avoid choosing a ring based only on the vehicle make or wheel appearance. Small dimensional differences matter, and a ring that is too loose may not center the wheel effectively. A ring that is too large may prevent the wheel from seating fully.
The hub and wheel mounting surfaces should be clean and free of rust, dirt, or debris before installation. After the wheel is fitted, the lug hardware must be tightened correctly and the assembly should be checked for clearance and vibration.
Common Fitment Mistakes
The most common mistake is treating a hub-centric ring as a general wheel adapter. It is not. A hub ring does not change PCD, move the wheel outward, or correct an offset problem. A normal wheel spacer also does not change bolt pattern, and it does not perform the same function as a hub-centric ring.
Another mistake is assuming that matching the center bore alone proves compatibility. Correct hub dimensions are only one part of wheel fitment; bolt pattern, wheel geometry, hardware, brake clearance, suspension clearance, and the tire package must also be checked.
