What Is a Wheel Adapter?

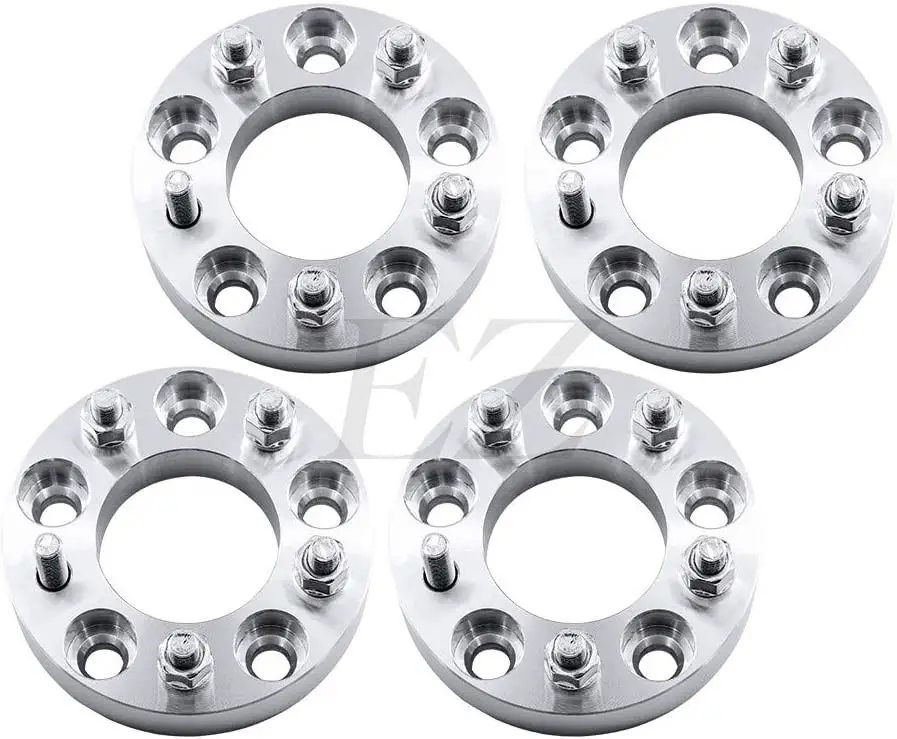

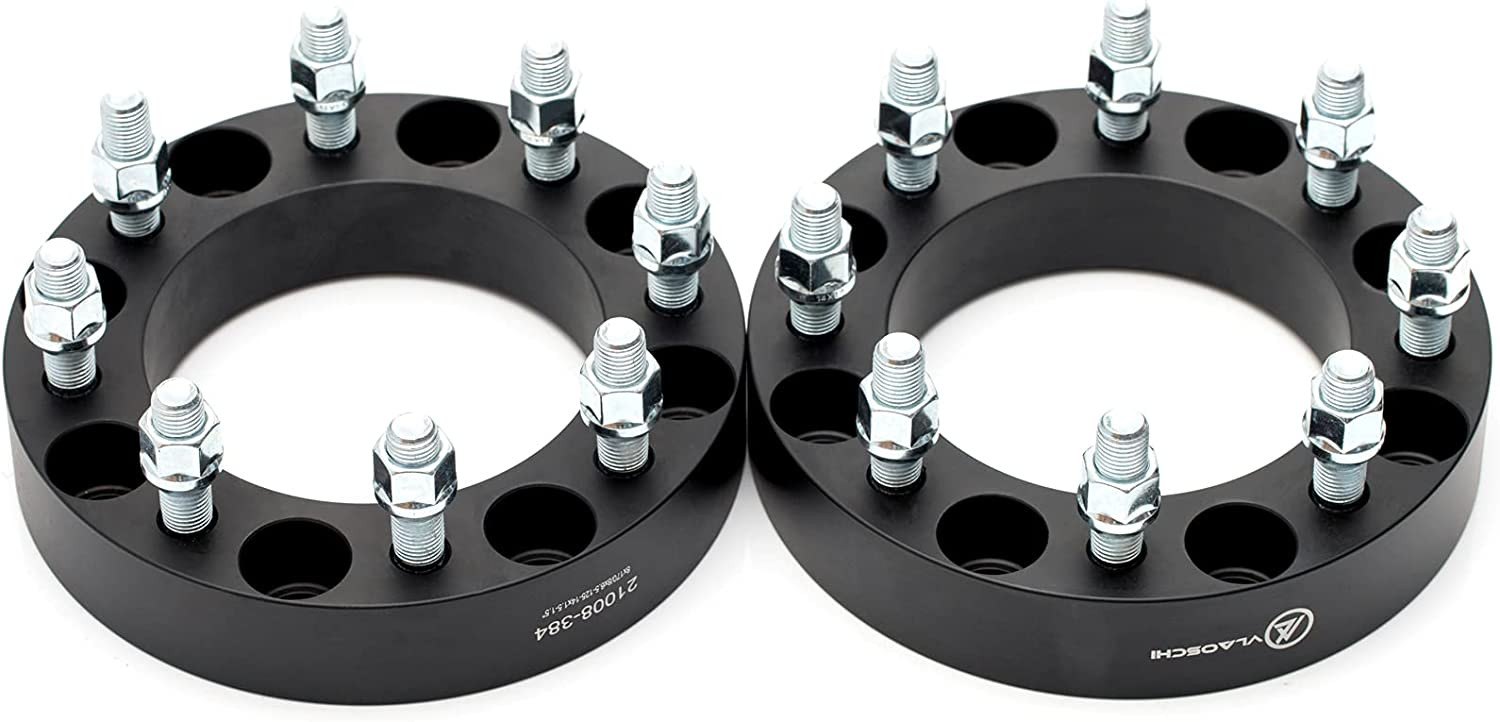

A wheel adapter is a fitment component installed between the vehicle hub and the wheel to change the mounting interface. The most common type converts one bolt pattern or PCD to another, allowing a wheel designed for a different pattern to be mounted to the target vehicle.
For example, an adapter may be designed to convert a vehicle hub with a 5x100 PCD to accept a wheel with a 5x114.3 PCD. The adapter must be specified for that exact direction: vehicle PCD → wheel PCD. A wheel with the wrong bolt pattern does not become compatible simply because the adapter looks physically similar.
"Bolt-pattern adapter" is a common alias for this part, although some adapters also address other mounting-interface differences.
How a Wheel Adapter Works
A typical bolt-pattern adapter attaches to the vehicle hub using one set of holes or studs. The wheel then attaches to a separate set of holes or studs in the adapter. This allows the adapter to provide a different wheel-side PCD.
Depending on its design, an adapter may also incorporate or change:
- The wheel mounting surface
- The center-bore interface
- The wheel fastener type or location
- The effective wheel offset
- The amount of space between the wheel and the hub
The adapter must be manufactured for the vehicle hub, the target wheel, and the required hardware. Its hub-side and wheel-side interfaces are not interchangeable, and the adapter's direction matters.
Why Wheel Adapters Matter for Fitment
A wheel adapter can change a result from Not Directly Compatible to Adapter Required, but it does not guarantee complete fitment. The adapter's thickness moves the wheel outward from the vehicle, which changes the effective offset and may affect:
- Fender and wheel-arch clearance
- Suspension and strut clearance
- Tire rubbing during steering or suspension travel
- Brake-caliper clearance
- Available thread engagement or stud engagement
- Track width and steering geometry
Offset should be evaluated together with wheel width. A thicker adapter generally reduces the wheel's effective offset by approximately the adapter thickness, but the actual clearance result also depends on the wheel's width, spoke shape, tire size, and vehicle configuration.
An adapter can also create additional interfaces and fasteners that must seat correctly. It should be compatible with the vehicle's hub, the wheel's center bore, and the intended lug nuts or wheel bolts. Some applications require special fasteners, recessed pockets, or clearance around the original studs.
Wheel Adapter vs. Wheel Spacer
A normal wheel spacer moves a wheel outward but does not change the bolt pattern. For example, a 6x135 wheel and a 6x139.7 vehicle hub do not become compatible by adding an ordinary spacer.
A bolt-pattern adapter is different because it provides a new wheel-side mounting pattern. Most adapters also act like spacers because they add thickness, but not every spacer is an adapter. A part should only be treated as a pattern-converting adapter if it is specifically designed and rated for the required vehicle-to-wheel PCD conversion.
A hub-centric ring has a different function as well. It reduces the effective wheel-bore interface when the wheel center bore is larger than the vehicle hub. It cannot correct a mismatched bolt pattern and cannot make a wheel with a center bore smaller than the vehicle hub fit.
What to Check Before Using an Adapter
Before selecting a wheel adapter, verify all of the following:
- Vehicle hub bolt pattern / PCD
- Wheel bolt pattern / PCD
- Adapter direction: vehicle PCD to wheel PCD
- Vehicle hub diameter and adapter hub-side bore
- Wheel center bore and adapter wheel-side pilot
- Adapter thickness and resulting effective offset
- Wheel width, tire size, and brake clearance
- Lug-bolt or lug-nut type, thread engagement, and seating style
- Clearance for original studs and adapter hardware
- Proper torque procedure and recheck requirements
- Compatibility with the vehicle's load, speed, and intended use
Do not assume that an adapter is suitable because its bolt pattern matches. Brake clearance, center-bore fit, fastener engagement, wheel construction, and vehicle configuration still need to be checked. If any of these details are unknown, the correct fitment result is Check Fitment, not a guaranteed direct fit.
A wheel that mounts through an adapter should generally be described as Adapter Required, rather than Direct Fit. The adapter is part of the fitment solution and must be included in any clearance and offset assessment.
