What Is a Wheel Spacer?
A wheel spacer, also called a spacer, is a machined plate or ring installed between the vehicle hub and the wheel. Its purpose is to create additional space behind the wheel by moving the wheel outward from the hub.
Spacers are commonly used to address limited clearance between the wheel and suspension components, brake parts, or other nearby surfaces. They can also change the wheel’s visual position in the fender. A spacer is a fitment aid, not a bolt-pattern converter: a normal spacer does not change the wheel’s PCD.
How a Wheel Spacer Changes Wheel Geometry
Spacer thickness is normally specified in millimeters (mm). Adding a spacer reduces the wheel’s effective offset by the same amount:
- Original wheel offset: +45 mm
- Spacer thickness: 10 mm
- Effective offset: approximately +35 mm
The wheel width itself does not change, but moving the entire wheel outward increases its distance from the vehicle’s mounting face. Because wheel width and offset work together, the resulting inner and outer clearances must be checked as a complete package rather than judging the spacer thickness alone.
A spacer may provide more clearance on the inner side, but it also reduces clearance to the fender or body on the outer side. It can therefore solve one interference problem while creating another.
Types of Wheel Spacers
The exact design matters for installation and safety:

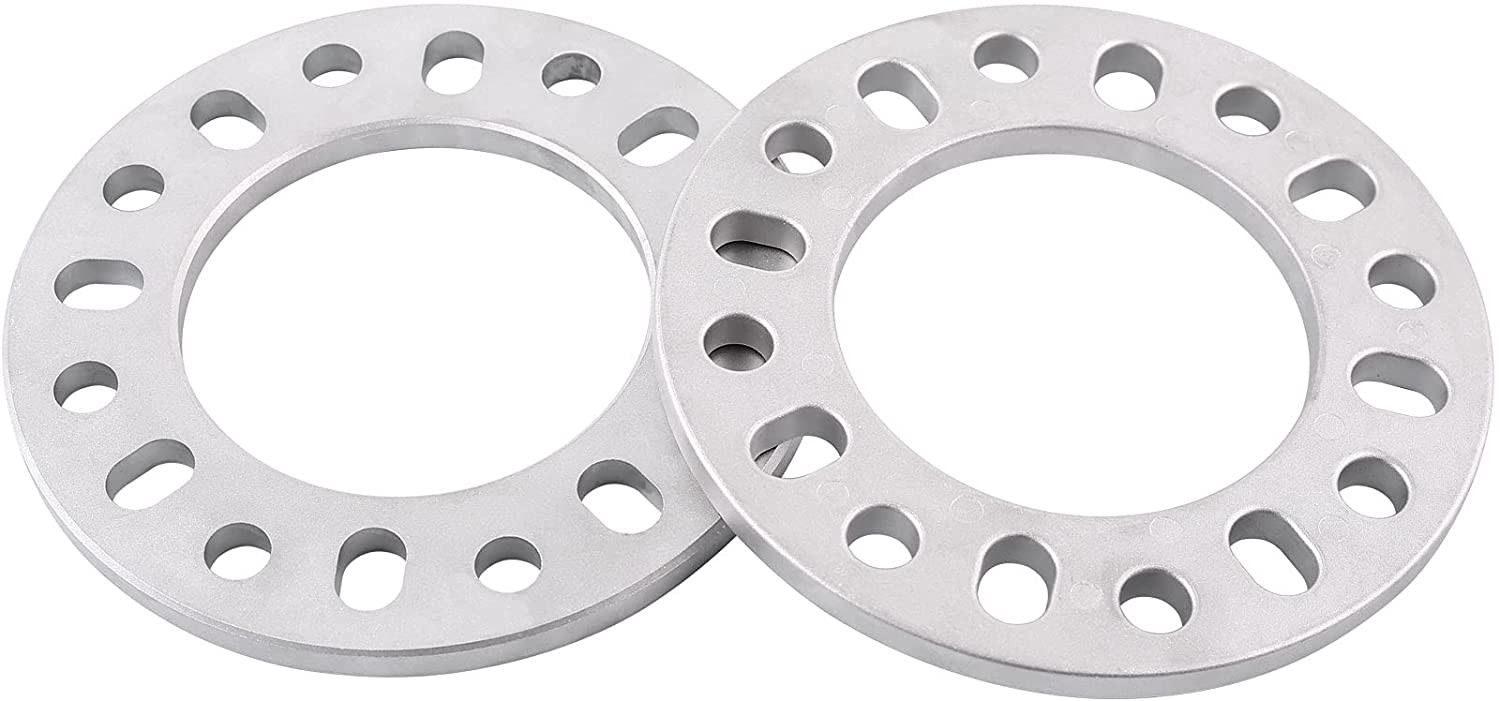

- Slip-on spacer: A flat spacer slides over the vehicle hub before the wheel is installed. The original wheel studs or wheel bolts must provide adequate thread engagement after the spacer is fitted.
- Hub-centric spacer: The spacer has a center lip that fits the vehicle hub and a matching lip or locating surface for the wheel. This helps maintain concentric mounting when the dimensions are correct.

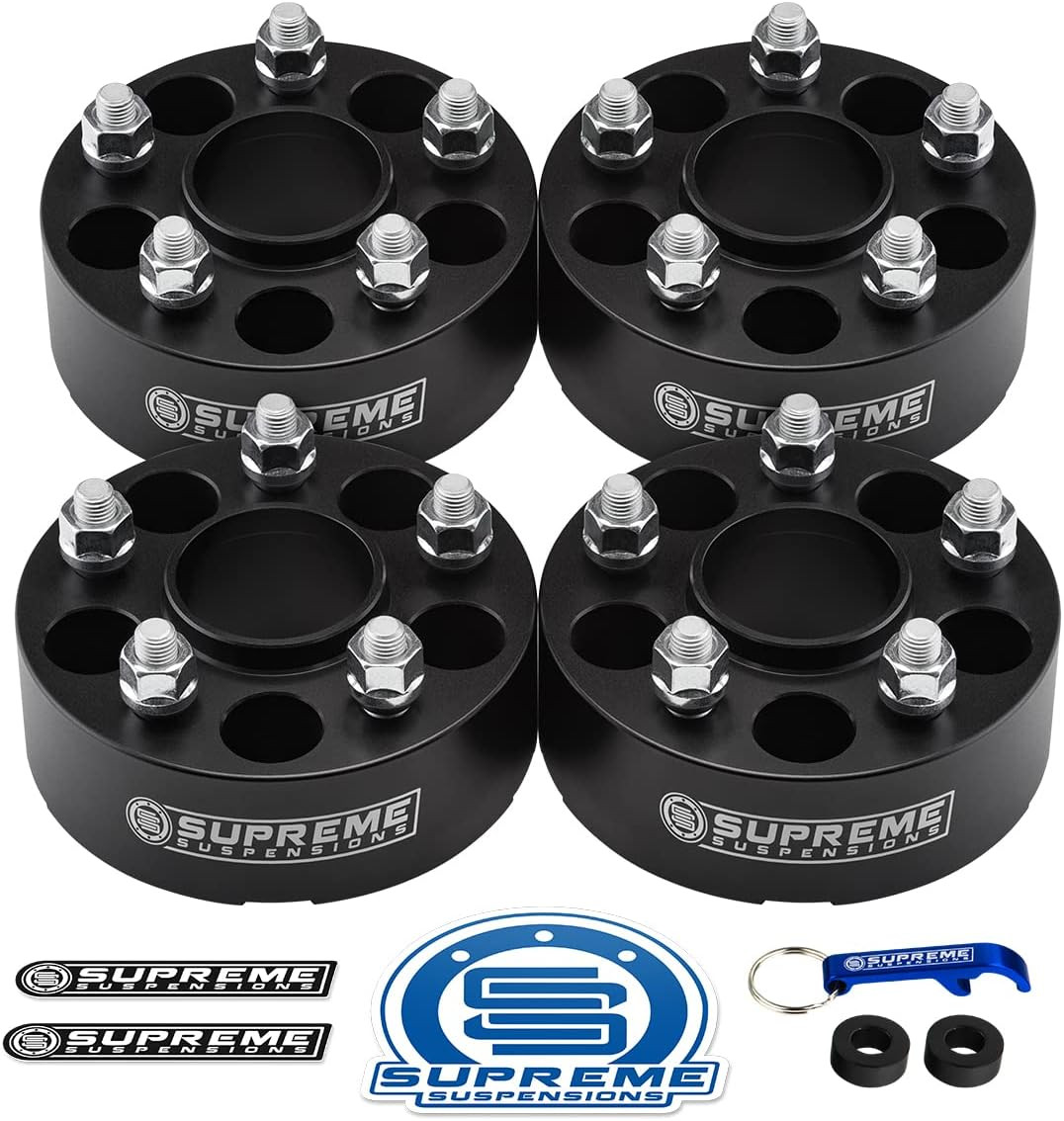

- Bolt-on spacer: A thicker spacer is secured to the vehicle hub with its own fasteners, and the wheel is then attached to the spacer. The spacer’s fasteners and the wheel’s fasteners must both be correct for the application.
A generic spacer should not be assumed to be hub-centric. The spacer’s center bore, hub fit, wheel locating lip, thickness, and hardware must all suit the target vehicle and wheel.
What a Wheel Spacer Does Not Do
A normal wheel spacer does not correct every type of fitment mismatch. In particular, it does not:
- Change one bolt pattern / PCD into another
- Make a wheel with a center bore smaller than the vehicle hub fit
- Automatically provide correct lug hardware or thread engagement
- Guarantee brake, suspension, or fender clearance
- Replace a bolt-pattern adapter when the donor wheel and target vehicle have different PCDs
For example, a 6x135 wheel and a 6x139.7 hub do not share the same bolt pattern. A normal spacer only moves the wheel outward; it does not convert 6x135 to 6x139.7. A purpose-built bolt-pattern adapter would be a different component, and its direction of conversion and installation requirements would need to be verified.
Similarly, if the wheel center bore is smaller than the vehicle hub diameter, a spacer does not remove that physical interference. If the wheel bore is larger, a hub-centric ring may be relevant, although the ring and spacer must be compatible with the complete mounting arrangement.
Common Fitment Mistakes
Using a spacer to solve a PCD mismatch
A spacer is not an adapter. Confirm that the wheel’s bolt holes match the target vehicle’s bolt pattern before considering a spacer.
Ignoring remaining thread engagement
With a slip-on spacer, the wheel sits farther from the hub, so less of the original stud or bolt engages the wheel hardware. The replacement hardware must be suitable for the spacer thickness, wheel seat design, and vehicle application. Do not assume that longer fasteners are automatically correct.
Losing hub engagement
A thick spacer or an unsuitable design can reduce the amount of the wheel supported by the vehicle’s hub. Check that the spacer is properly supported and that its locating lip still provides the required wheel centering.
Checking only inner clearance
Moving the wheel outward may clear a strut or brake component but bring the tire or wheel closer to the fender. Check the full wheel-and-tire package through steering and suspension movement where applicable.
Treating all spacers as universal
The wheel center bore, vehicle hub diameter, bolt pattern, stud or bolt arrangement, spacer thickness, and hardware specifications all matter. A spacer that fits one vehicle and wheel combination may not be suitable for another.
How to Use a Spacer in a Fitment Decision
A wheel that otherwise matches the target vehicle may be classified as Fits With Spacer when a correctly specified spacer is needed for clearance or positioning. That classification does not mean every spacer will work. Verify:
- Wheel and vehicle bolt pattern / PCD
- Wheel center bore and vehicle hub diameter
- Spacer thickness and effective offset
- Brake, suspension, tire, and fender clearance
- Hub engagement and spacer centering
- Correct lug nuts or wheel bolts, including seat type and required engagement
- Vehicle-specific installation and torque requirements
If these dimensions or clearances are unknown, the appropriate result is Check Fitment, not an assumption of compatibility.
