2002 GMC Envoy Wheel Interchange

OEM wheel and tire fitment specs for the 2002 GMC Envoy, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.

Recorded OEM specifications for the 2002 GMC Envoy, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.

Start a donor comparison

2002 GMC Envoy Fitment Specs

Baseline mounting dimensions used for interchange decisions.

Bolt Pattern6x127
Center Bore78.3 mm
Lug ThreadM12 x 1.5 View M12 x 1.5 options on Amazon
OEM Wheel Sizes17" – 18"
OEM Widths7" – 8"
OEM Offset Range40 mm – 50 mm

Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.

Center-bore records disagree: year-level hub 78.1 mm vs trim range 78.3–78.3 mm. Interchange below does not treat this as an unqualified match.

Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.

Donor vehicles with overlapping OEM specs

These are vehicle-year records whose recorded OEM ranges overlap this 2002 GMC Envoy. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.

Evaluated 7 donor years. Listed 7 eligible overlaps (not all evaluated years are compatible). Showing all listed.

2003–2009 GMC Envoy

Check wheel configurationCenter-bore records disagree

Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.

  • 2003
  • 2004
  • 2005
  • 2006
  • 2007
  • 2008
  • 2009
  • Bolt pattern6x127 · Same recorded PCD
  • Center bore78.3 mm · same recorded hub figure
  • Wheel geometryOEM width/offset ranges overlap (not a specific wheel)

Center-bore records disagree (target year-level hub 78.1 mm vs trim range 78.3–78.3 mm; donor year-level hub 78.1 mm vs trim range 78.3–78.3 mm). Unqualified overlap is not claimed until the conflict is resolved.

GMC Envoy Years With Compatible Wheels

Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.

Will Wheels From Another Vehicle Fit?

Compare a donor vehicle or custom wheel against this 2002 GMC Envoy. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.

Compare

Compare wheel compatibility between two vehicles

Wheels from (donor vehicle)

Installed on (your vehicle)

Selected Car:

2002 GMC Envoy

Compare Rims

Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
6x127
Center Bore
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
78.3 mm
Thread Size
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M12 x 1.5
Rim Diameter
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
17"
Rim Width
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
7.0"
Wheel Offset
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
50 mm
Backspacing
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-

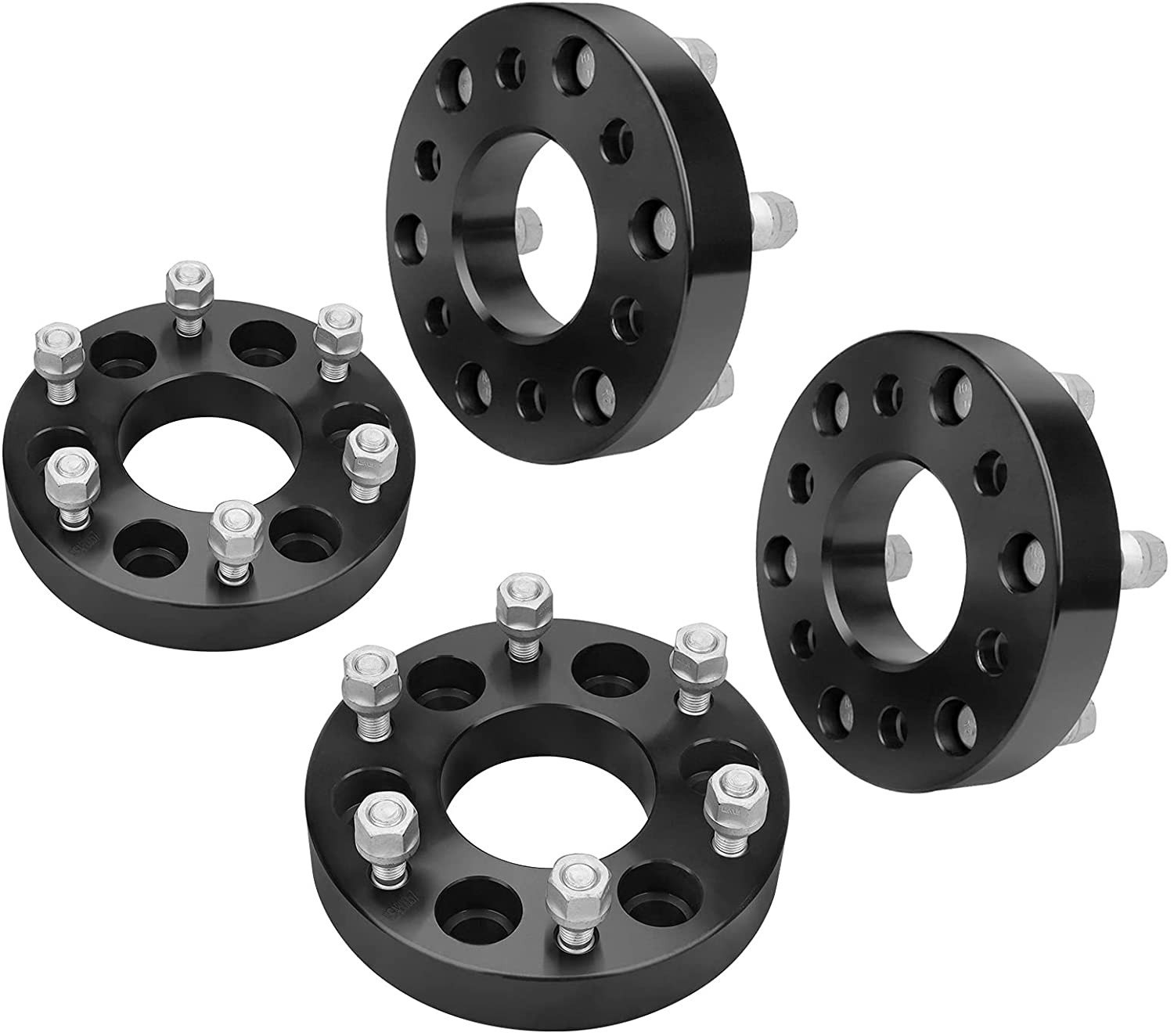

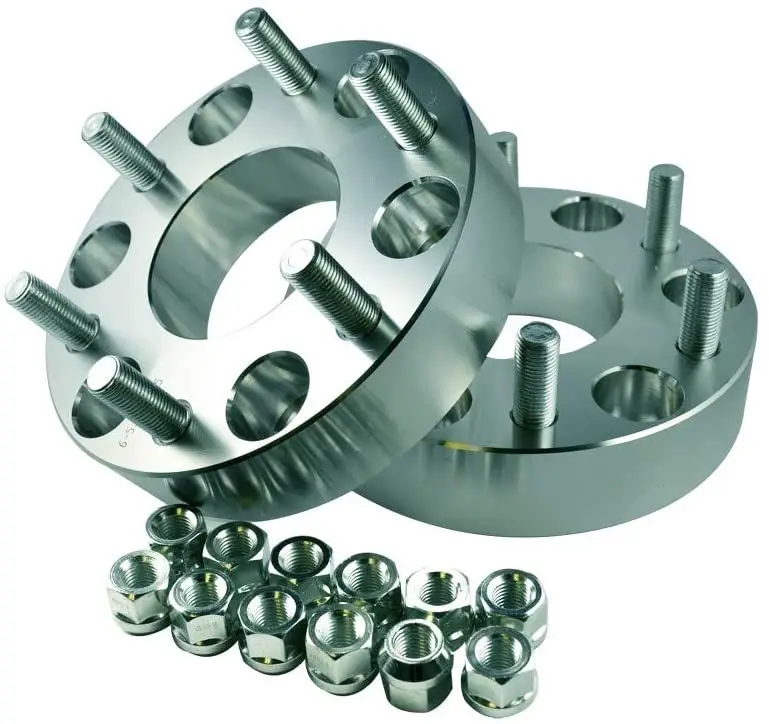

Wheel Fitment Parts for the 2002 GMC Envoy

Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.

Lug Nuts / Wheel Bolts

M12 x 1.5

As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.

2002 GMC Envoy Wheel Fitment

Bolt Pattern6x127
Center Bore78.3 mm
Thread SizeM12 x 1.5
Rim Diameter17"
Rim Width7.0"
Wheel Offset50 mm

Use the calculator below to compare wheels from another vehicle against your 2002 GMC Envoy, or check compatible donor vehicles that share the same bolt pattern and center bore.

Fitment Basics

  • Always confirm center bore matches your hub, or use hub-centric rings to take up the gap.
  • Check offset carefully – wheels that stick out too far can rub on fenders or suspension components.
  • Verify thread size and lug type before buying replacement bolts or lug nuts.
  • When in doubt, use the calculator below to compare exact specs side by side.

Methodology and sources

Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:

  • Bolt pattern / PCD
  • Center bore direction (donor wheel bore must not be smaller than the hub)
  • Wheel diameter, width, and offset against known OEM ranges
  • Lug thread / hardware differences (vehicle-side hardware)

A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
