OEM wheel and tire fitment specs for the 2021 RAM ProMaster 1500, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.
Recorded OEM specifications for the 2021 RAM ProMaster 1500, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.
OEM Wheel SizesNot fully verified in current dataset
OEM WidthsNot fully verified in current dataset
OEM Offset RangeNot fully verified in current dataset
Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.
Donor vehicles with overlapping OEM specs
These are vehicle-year records whose recorded OEM ranges overlap this 2021 RAM ProMaster 1500. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.
Evaluated 5 donor years. Listed 5 eligible overlaps (not all evaluated years are compatible). Showing all listed.
Insufficient dataCheck lug hardware: donor year M16x1.5 vs 2021 RAM ProMaster 1500 M16x1.50
Bolt pattern5x130 · Same recorded PCD
Center bore78.1 mm · same recorded hub figure
Wheel geometryNot fully recorded
Recorded vehicle-side thread for the 2021 RAM ProMaster 1500 is M16x1.50. This donor year is recorded as M16x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Compare a donor vehicle or custom wheel against this 2021 RAM ProMaster 1500. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.
Compare
Compare wheel compatibility between two vehicles
Wheels from (donor vehicle)
Selected Car:
Custom wheel size (optional)
Tip: change values here to simulate custom wheels and immediately see the impact in the comparison below.
Custom tire size (optional)
Installed on (your vehicle)
Selected Car:
2021 RAM ProMaster 1500
Compare Rims
Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x130
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
78.1 mm
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M16 x 1.50
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
-
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
-
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
-
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-
Compare Tires
Specification
Wheels from
Installed on
Result (Click it)
Section Width
The width of the tire from sidewall to sidewall, measured in millimeters.
-
-
Aspect Ratio
The height of the tire’s sidewall expressed as a percentage of its width.
-
-
Diameter
The wheel diameter for which the tire is designed to fit.
-
-
Tire Pressure
The recommended air pressure for safe and efficient driving.
-
-
Overall Diameter
The total height of the tire and wheel combined affects clearance and speedometer accuracy.
-
-

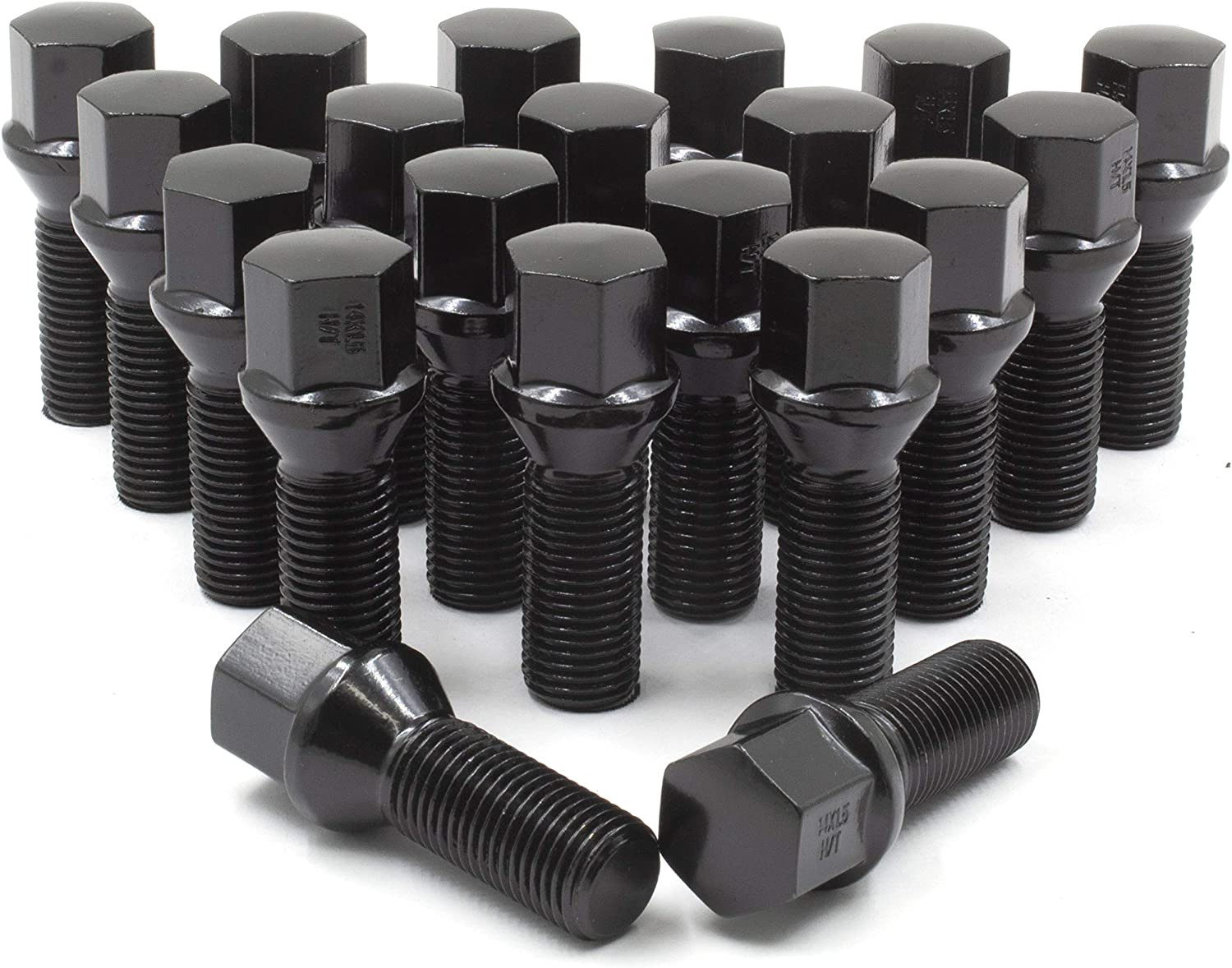

Wheel Fitment Parts for the 2021 RAM ProMaster 1500
Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.
As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.
2021 RAM ProMaster 1500 Wheel Fitment
Bolt Pattern
5x130
Center Bore
78.1 mm
Thread Size
M16 x 1.50
Rim Diameter
Not specified – check via calculator
Rim Width
Not specified – check via calculator
Wheel Offset
Not specified – check via calculator
Use the calculator below to compare wheels from another vehicle against your 2021 RAM ProMaster 1500, or check compatible donor vehicles that share the same bolt pattern and center bore.
Fitment Basics
Always confirm center bore matches your hub, or use hub-centric rings to take up the gap.
Check offset carefully – wheels that stick out too far can rub on fenders or suspension components.
Verify thread size and lug type before buying replacement bolts or lug nuts.
When in doubt, use the calculator below to compare exact specs side by side.
Methodology and sources
Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:
Bolt pattern / PCD
Center bore direction (donor wheel bore must not be smaller than the hub)
Wheel diameter, width, and offset against known OEM ranges
A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
