2019 Toyota 86 Wheel Interchange

OEM wheel and tire fitment specs for the 2019 Toyota 86, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.

2019 Toyota 86 Fitment Specs

Baseline mounting dimensions used for interchange decisions.

Bolt Pattern5x100
Center Bore56.1 mm
Lug ThreadM12 x 1.25
OEM Wheel Sizes15" – 19"
OEM Widths6" – 8.5"
OEM Offset Range35 mm – 58 mm

Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.

Wheels That Interchange With a 2019 Toyota 86

Results are evaluated from bolt pattern, center bore direction, OEM width/offset envelope, and lug hardware – not bolt pattern alone.

Direct Fit

2018 Toyota 86

Direct Fit
  • Bolt pattern5x100 · Match
  • Center bore56.1 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change -1.67 mm, inner change -4.68 mm vs mid OEM).

2020 Toyota 86

Direct Fit
  • Bolt pattern5x100 · Match
  • Center bore56.1 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change -1.67 mm, inner change -4.68 mm vs mid OEM).

2017 Toyota 86

Direct Fit
  • Bolt pattern5x100 · Match
  • Center bore56.1 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change -1.67 mm, inner change -4.68 mm vs mid OEM).

2021 Toyota 86

Direct Fit
  • Bolt pattern5x100 · Match
  • Center bore56.1 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change -1.67 mm, inner change -4.68 mm vs mid OEM).

Toyota 86 Years With Compatible Wheels

Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.

Will Wheels From Another Vehicle Fit?

Compare a donor vehicle or custom wheel against this 2019 Toyota 86.

Compare

Compare wheel compatibility between two vehicles

Wheels from (donor vehicle)

Installed on (your vehicle)

Selected Car:

2019 Toyota 86

Compare Rims

Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x100
Center Bore
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
56.1 mm
Thread Size
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M12 x 1.25
Rim Diameter
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
17"
Rim Width
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
7.0"
Wheel Offset
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
48 mm
Backspacing
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-

Wheel Fitment Parts for the 2019 Toyota 86

Products below are matched to required fitment dimensions from our parts inventory. Confirm seat style, thickness, and clearance before ordering.

Lug Nuts / Wheel Bolts

M12 x 1.25

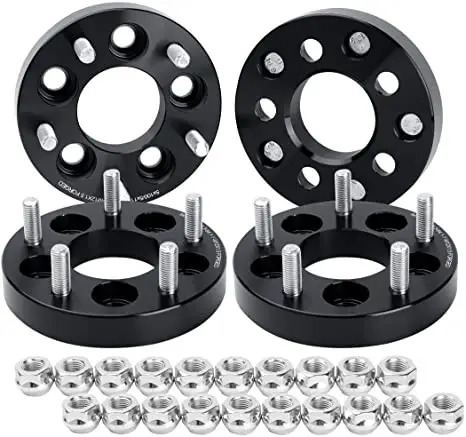

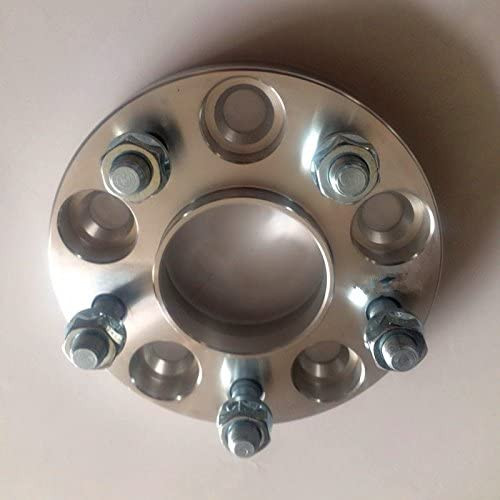

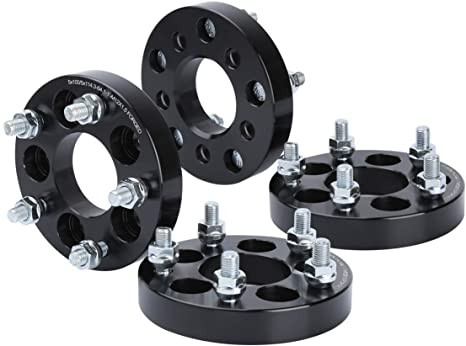

Wheel Adapters

5x100 · 56.1 mm hub

Directional bolt-pattern adapters. A spacer does not change PCD.

As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.

Why These Wheels Fit

Wheel interchange depends on more than bolt pattern. Where data is available, this site compares:

  • Bolt pattern / PCD
  • Center bore direction (donor wheel bore must not be smaller than the hub)
  • Wheel diameter, width, and offset against known OEM ranges
  • Lug thread / hardware differences (vehicle-side hardware)

A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.

2019 Toyota 86 Wheel Fitment

Bolt Pattern5x100
Center Bore56.1 mm
Thread SizeM12 x 1.25
Rim Diameter17"
Rim Width7.0"
Wheel Offset48 mm

Use the calculator below to compare wheels from another vehicle against your 2019 Toyota 86, or check compatible donor vehicles that share the same bolt pattern and center bore.

Fitment Basics

  • Always confirm center bore matches your hub, or use hub-centric rings to take up the gap.
  • Check offset carefully – wheels that stick out too far can rub on fenders or suspension components.
  • Verify thread size and lug type before buying replacement bolts or lug nuts.
  • When in doubt, use the calculator below to compare exact specs side by side.
