2017 BMW M4
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2018 BMW M4 Wheel Interchange
OEM wheel and tire fitment specs for the 2018 BMW M4, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.
2018 BMW M4 Fitment Specs
Baseline mounting dimensions used for interchange decisions.
Bolt Pattern5x120
Center Bore72.6 mm
Lug ThreadM14 x 1.25
OEM Wheel Sizes18" – 20"
OEM Widths8.5" – 9.5"
OEM Offset Range27 mm – 29 mm
Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.
Wheels That Interchange With a 2018 BMW M4
Results are evaluated from bolt pattern, center bore direction, OEM width/offset envelope, and lug hardware – not bolt pattern alone.
Direct Fit
2019 BMW M4
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2016 BMW M4
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2020 BMW M4
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2015 BMW M4
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2016 BMW M2
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2017 BMW M2
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2018 BMW M2
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2019 BMW M2
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2020 BMW M2
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2021 BMW M2
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2015 BMW M3
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2016 BMW M3
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2017 BMW M3
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2018 BMW M3
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Mounting dimensions align with known OEM fitment for this vehicle.
2017 BMW X3
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Geometry within known OEM envelope (approx. outer change -0.35 mm, inner change -12.35 mm vs mid OEM).
2018 BMW X4
Direct Fit- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
Geometry within known OEM envelope (approx. outer change -0.35 mm, inner change -12.35 mm vs mid OEM).
Direct Fit – Hardware Note
2008 BMW M3
Direct Fit – Hardware Note- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
- HardwareUse lug nuts for your vehicle
HardwareLug nuts for M14x1.25
Use lug nuts compatible with your vehicle's studs.
2009 BMW M3
Direct Fit – Hardware Note- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
- HardwareUse lug nuts for your vehicle
HardwareLug nuts for M14x1.25
Use lug nuts compatible with your vehicle's studs.
2010 BMW M3
Direct Fit – Hardware Note- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
- HardwareUse lug nuts for your vehicle
HardwareLug nuts for M14x1.25
Use lug nuts compatible with your vehicle's studs.
2011 BMW M3
Direct Fit – Hardware Note- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
- HardwareUse lug nuts for your vehicle
HardwareLug nuts for M14x1.25
Use lug nuts compatible with your vehicle's studs.
2012 BMW M3
Direct Fit – Hardware Note- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
- HardwareUse lug nuts for your vehicle
HardwareLug nuts for M14x1.25
Use lug nuts compatible with your vehicle's studs.
2013 BMW M3
Direct Fit – Hardware Note- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryCompatible with OEM envelope
- HardwareUse lug nuts for your vehicle
HardwareLug nuts for M14x1.25
Use lug nuts compatible with your vehicle's studs.
Fits With Spacer
2004 BMW X3
Fits With Spacer- Bolt pattern5x120 · Match
- Center bore72.6 mm · Match
- Wheel geometryOutside OEM envelope
- HardwareUse lug nuts for your vehicle
Potential requirementWheel spacer ≈ 17.35 mm
Potential requirement: 17.35 mm wheel spacer. Estimated outer position is about 17.35 mm farther inward than the mid OEM package. Use lug nuts / bolts specified for your vehicle.
Showing 24 of 95 evaluated donors. Same-model years are prioritized.
BMW M4 Years With Compatible Wheels
Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.
Will Wheels From Another Vehicle Fit?
Compare a donor vehicle or custom wheel against this 2018 BMW M4.
Compare
Compare wheel compatibility between two vehicles
Wheels from (donor vehicle)
Installed on (your vehicle)
Selected Car:
2018 BMW M4
Compare Rims
Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x120
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
72.6 mm
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M14 x 1.25
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
19"
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
9.0"
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
29 mm
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-
Wheel Fitment Parts for the 2018 BMW M4
Products below are matched to required fitment dimensions from our parts inventory. Confirm seat style, thickness, and clearance before ordering.
Lug Nuts / Wheel Bolts
M14 x 1.25
Rison Titanium Open End Lug Nuts (M14x1.25, Burnt Blue)
M14 x 1.25 · Confirm wheel seat style before ordering
View on Amazon →Wheel Spacers
5x120 · 72.6 mm hub

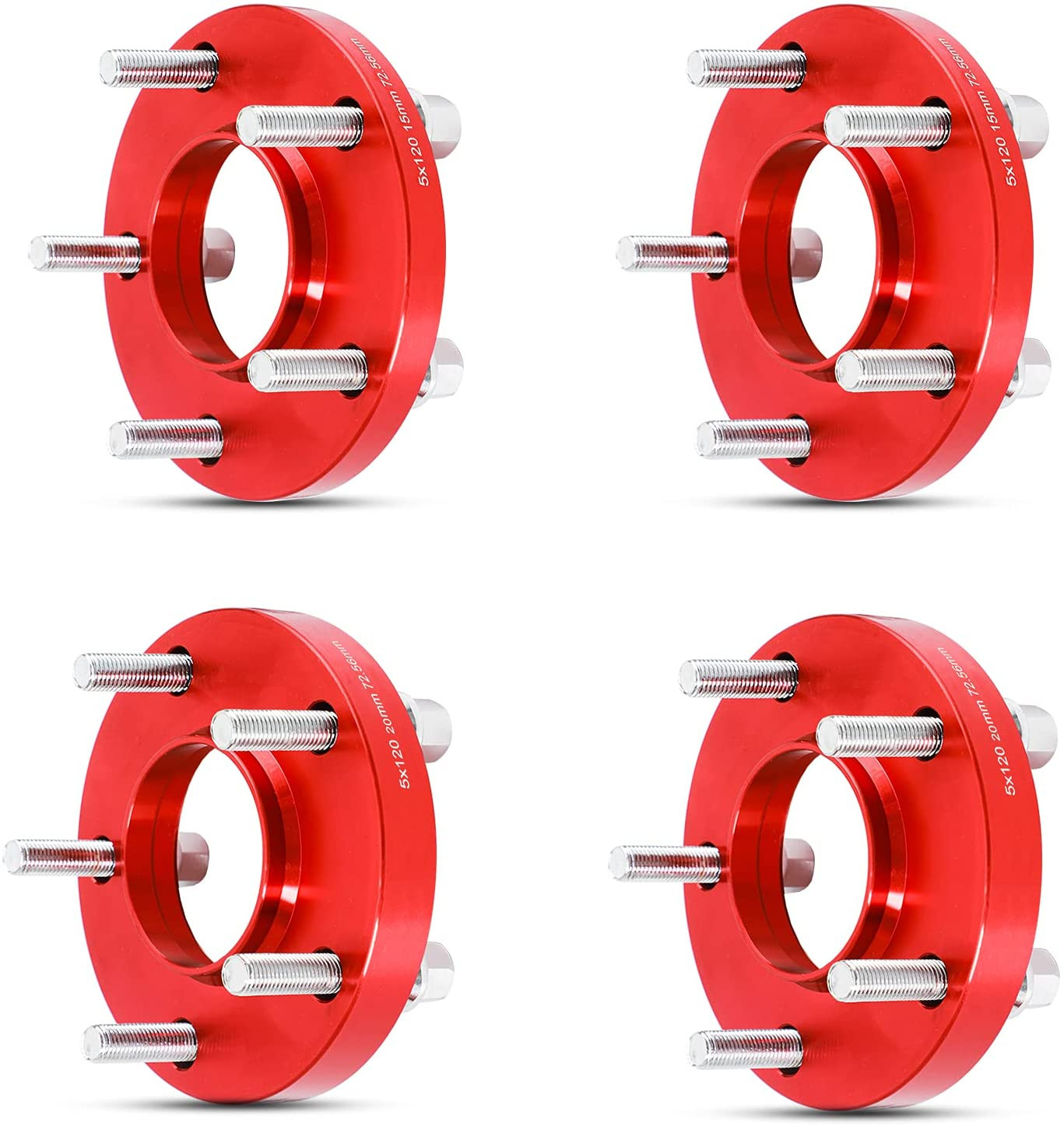

Pilida Wheel Spacers Set
5x120 · 72.6 mm hub · 0,6 inch / 15 mm
View on Amazon →Wheel Adapters
5x120 · 72.6 mm hub
Directional bolt-pattern adapters. A spacer does not change PCD.
Ezaccessory Wheel Adapters 5x120 to 5x127
5x120 → 5x127
View on Amazon →
EZAccessory Wheel Adapters 5x120 to 5x4.5
5x120 → 5x114.3
View on Amazon →
Autobahn88 Wheel Adapters (0.8")
5x120 → 5x114.3
View on Amazon →As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.
Why These Wheels Fit
Wheel interchange depends on more than bolt pattern. Where data is available, this site compares:
- Bolt pattern / PCD
- Center bore direction (donor wheel bore must not be smaller than the hub)
- Wheel diameter, width, and offset against known OEM ranges
- Lug thread / hardware differences (vehicle-side hardware)
A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
2018 BMW M4 Wheel Fitment Guide
This page summarizes the wheel and tire data available for the 2018 BMW M4. Some OEM specifications vary by package and axle position. If a spec is not listed here or looks inconsistent, verify it on your vehicle and with OEM sources before purchasing or installing wheels or tires. Use the on-page calculator to compare donor wheels to your M4 and to model custom wheel and tire sizes.
Known OEM fitment for 2018 BMW M4
| Bolt pattern | 5x120 |
| Center bore | 72.6 mm |
| Thread size | M14 x 1.25 |
| Rim diameter | 19 in |
| Rim width | 9.0 in |
| Wheel offset (ET) | 29 mm |
| Backspacing | 5.64 in |
| Tire section width | 255 mm |
| Tire aspect ratio | 40 |
| Tire rim diameter | 18 in |
Notes: OEM wheel and tire sizes on the M4 can be staggered and can vary by package. The values above reflect known data points but may not represent both axles or all trims. The listed rim diameter and tire rim diameter show both 19 inch and 18 inch equipment in the data. Backspacing can be listed differently depending on how the wheel lip is accounted for. Always confirm what is on your specific vehicle before ordering parts.
For reference only, a 255/40R18 tire is approximately 26.0 in overall diameter. Use this as a comparison point in the calculator, not as a guarantee of your factory size.
How to use the Wheel Interchange Calculator
- Set Installed on to 2018 BMW M4. Set Wheels from to your donor vehicle or wheel source.
- Use Custom wheel size to model diameter, width, and offset. Use Custom tire size to set section width and aspect ratio.
- When you change rim diameter, the tool updates tire diameter in the comparison so you can keep overall diameter in a safe range.
- Review:
- Inner clearance change to strut and suspension.
- Outer position change at the fender lip.
- Ride height change from tire diameter difference and the resulting speedometer variance.
- If your OEM size is not fully known, start with the values above, then adjust to match your door-jamb tire label or current tire sidewall markings.
Fitment guidance and safety checks
- Offset and width work together. Lower offset or wider wheels push outward. Higher offset or narrower wheels tuck inward. Model both in the calculator to avoid fender contact or inner interference.
- Brake clearance is critical. Visually and physically test for spoke and barrel clearance over calipers. Do not rely on diameter alone.
- Tire diameter should stay close to OEM to protect ABS and stability control behavior. Use the calculator to compare overall diameter and speedometer impact.
- Staggered setups may be present from the factory. If unknown, verify front and rear sizes individually on the vehicle or with OEM documentation.
- Backspacing values can vary by source because some measurements include the wheel lip. When in doubt, measure your wheel directly and use the calculator to cross-check.
- TPMS compatibility can vary by wheel and sensor. Reuse compatible sensors or source correct replacements for your model year.
Hardware and installation essentials
- Bolt pattern 5x120 must match the wheel exactly. Do not attempt to fit mismatched patterns.
- Center bore 72.6 mm. If the aftermarket wheel has a larger bore, use hub-centric rings sized to 72.6 mm at the hub and your wheel’s bore on the outer side. Never use rings to adapt a smaller bore to a larger hub.
- Thread size M14 x 1.25. Use the correct seat type specified by the wheel manufacturer and the correct fastener length, especially if spacers are used. If spacers are added, longer wheel bolts must provide sufficient thread engagement. Spacers are not recommended unless you fully validate clearance and hardware requirements.
- Tightening torque is not provided here. Confirm in the BMW owner’s manual or service information for your VIN. Re-torque after 50 to 100 miles of driving.
How to confirm your exact OEM sizes
- Door-jamb tire label shows factory tire sizes and pressures for your trim.
- Check current tire sidewalls for size on each axle and compare to the calculator.
- Inspect the back of your wheel for stamped width, diameter, and offset markings. Common formats include 9Jx19 ET29.
- Use your VIN with an official BMW parts catalog or dealer to confirm wheel part numbers and specifications for your exact build.
- If backspacing is unclear, measure your wheel directly with a straightedge and ruler or caliper, then verify with the calculator.
