OEM wheel and tire fitment specs for the 2005 Audi TT, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.
Recorded OEM specifications for the 2005 Audi TT, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.
Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.
Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.
Donor vehicles with overlapping OEM specs
These are vehicle-year records whose recorded OEM ranges overlap this 2005 Audi TT. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.
Evaluated 7 donor years. Listed 7 eligible overlaps (not all evaluated years are compatible). Showing all listed.
Wheel geometryOEM width/offset ranges overlap (not a specific wheel)
Recorded OEM bolt pattern, center bore, and width/offset ranges overlap. This is not a guarantee that every wheel from the donor year fits this vehicle.
Lug thread is not fully recorded for this comparison. Hardware must match the 2005 Audi TT studs and the selected wheel’s seat. Unknown hardware is not a match.
Bolt pattern data is incomplete for a full interchange decision.
Audi TT Years With Compatible Wheels
Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.
Compare a donor vehicle or custom wheel against this 2005 Audi TT. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.
Compare
Compare wheel compatibility between two vehicles
Wheels from (donor vehicle)
Selected Car:
Custom wheel size (optional)
Tip: change values here to simulate custom wheels and immediately see the impact in the comparison below.
Custom tire size (optional)
Installed on (your vehicle)
Selected Car:
2005 Audi TT
Compare Rims
Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x100
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
57.1 mm
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M14 x 1.5
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
16"
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
7.0"
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
31 mm
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-
Compare Tires
Specification
Wheels from
Installed on
Result (Click it)
Section Width
The width of the tire from sidewall to sidewall, measured in millimeters.
-
-
Aspect Ratio
The height of the tire’s sidewall expressed as a percentage of its width.
-
-
Diameter
The wheel diameter for which the tire is designed to fit.
-
-
Tire Pressure
The recommended air pressure for safe and efficient driving.
-
-
Overall Diameter
The total height of the tire and wheel combined affects clearance and speedometer accuracy.
-
-

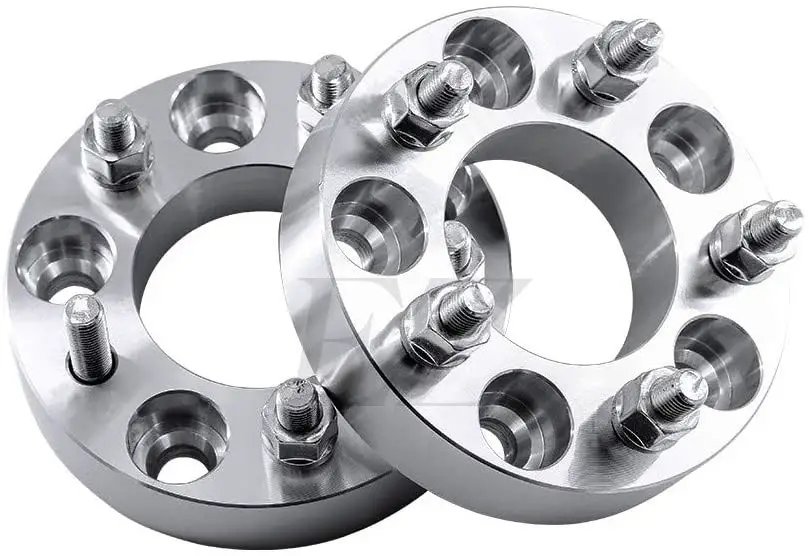

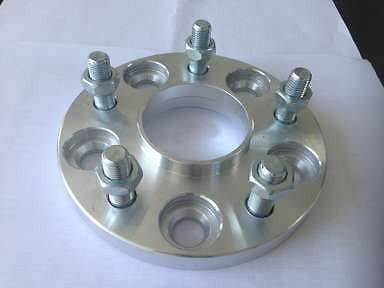

Wheel Fitment Parts for the 2005 Audi TT
Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.
As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.
2005 Audi TT Wheel Fitment Guide
tl;dr
Start from the OEM baseline below. Keep 5x100 bolt pattern, 57.1 mm center bore, and M14 x 1.5 lug bolts. Use the on-page calculator to compare any donor wheels to your 2005 TT, and keep inner and outer clearances close to stock. Verify brake clearance and hub centering before driving.
Known OEM baseline
Bolt pattern
5x100
Center bore
57.1 mm
Thread size
M14 x 1.5
OEM rim size
16 x 7.0 in
Offset (ET)
31 mm
Backspacing
4.72 in
OEM tire size
205/55R16
Notes: Wheel diameter and brake clearance may vary by trim or brake package. If your trim differs, confirm with the owner manual, your VIN at an Audi dealer, or by test fit.
Recommendation
I recommend a lifecycle approach. Start with the stock values above, then model changes in the WheelInterchange.com calculator.
Set Installed on to 2005 Audi TT, then enter the OEM baseline.
Enter the donor wheel and tire, or use Custom wheel size and Custom tire size.
Match overall tire diameter close to stock to protect ABS and speedometer. The calculator updates tire diameter when you change rim diameter.
Use offset to keep inner clearance and outer poke close to stock. Aim for minimal change on both sides of the tire.
Keep the bolt pattern at 5x100. Keep center bore at 57.1 mm, or use proper hub-centric rings if the wheel bore is larger.
Confirm bolt seat type matches the wheel, and use correct-length M14 x 1.5 lug bolts.
Impact
Offset change affects fender poke, strut clearance, and steering feel.
Wider rims can add grip but may rub fenders or liners.
Larger diameter wheels may need lower-profile tires, which ride firmer.
Incorrect center bore or seat type can cause vibration at speed.
Wrong bolt length or pattern risks thread damage or loss of clamping force.
Risks
Brake caliper clearance: Spokes and barrels must clear the caliper. Do a visual test fit.
Inner suspension clearance: Check strut, spring perch, and control arms at full lock and compression.
Fender and liner rubbing: Check outer clearance with steering turned and under load.
Hub centering: 57.1 mm is required for hub-centric fit on the TT hub. Use quality rings if the wheel bore is larger. Do not rely on bolts to center.
Lug interface: Audi OEM wheels typically use a specific seat type. Match ball or cone seat to the wheel. Mixing seat types is unsafe.
Bolt engagement: Ensure full thread engagement to factory spec. Do not use overly short or long bolts.
Adapters and wobble hardware: Avoid unless engineered for this platform and verified. They add complexity and risk.
Load ratings: Wheel and tire load index must meet or exceed OEM requirements.
Next actions
Use this checklist before you buy or install.
Confirm your trim and brake package. If uncertain, verify with the owner manual or your VIN at an Audi dealer.
Open the on-page calculator. Set your 2005 TT as Installed on and input the OEM baseline.
Input the donor wheel and tire, or a custom setup. Keep tire diameter close to stock. Watch inner and outer clearance deltas.
Plan for hub centering. If the wheel bore is larger than 57.1 mm, source matching hub-centric rings.
Match bolt seat type to the wheel. Order correct-length M14 x 1.5 bolts if needed.
Test fit one corner. Spin the wheel, turn lock to lock, compress suspension if possible, and check caliper clearance.
Torque all bolts to the factory spec using a calibrated wrench. Re-check torque after the first short drive.
Road test. Listen and feel for vibration. If present, re-check centering, torque, and balance.
Rim diameter may not clear larger brakes on some trims. Confirm physically.
Aftermarket wheels often use a different bolt seat. Do not reuse OEM bolts blindly.
Backspacing and offset both matter. Trust the calculator results, then verify on the car.
Do not assume any 5x100 wheel will fit. Center bore, offset, and caliper shape still apply.
If a value is missing for your specific trim, use the calculator with your measured wheel, then confirm against OEM documentation. That avoids surprises and protects safety.
Methodology and sources
Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:
Bolt pattern / PCD
Center bore direction (donor wheel bore must not be smaller than the hub)
Wheel diameter, width, and offset against known OEM ranges
A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
