2021 BMW X3 Wheel Interchange

2021 BMW X3 Wheel Fitment Guide

Known OEM Fitment For 2021 BMW X3

The values below are the OEM fitment data currently available for the 2021 BMW X3. This list may be partial. BMW offered multiple wheel and tire packages by trim and option package. If a value for your specific trim is not shown, confirm it with your door-jamb tire placard, owner’s manual, or your BMW dealer by VIN, then use the on-page calculator to compare any changes before you buy.

Note: The listed tire size is 19 inch while the listed wheel diameter is 20 inch. This likely reflects different OEM packages for the 2021 X3. Always verify your vehicle’s original size on the driver door placard and compare in the calculator.

How To Use The Wheel Interchange Calculator

The calculator lets you safely compare a donor setup to your vehicle and test custom sizes. Follow these steps:

• Open the calculator on this page.
• In Wheels from donor vehicle, enter the known specs for the wheel and tire you want to try. Use the exact rim diameter, width, and offset, plus the tire section width and aspect ratio. If you change rim diameter, the tire diameter in the comparison updates to keep calculations accurate.
• In Installed on your vehicle, select 2021 BMW X3 and enter your OEM wheel and tire from your door placard or the table above if it matches your trim.
• Use Custom wheel size and Custom tire size to try alternatives. Adjust:
  • Rim diameter and width to see brake and fender clearance changes.
  • Offset to shift inner and outer position relative to strut and fender.
  • Tire section width and aspect ratio to keep overall diameter close to OEM.
• Review inner clearance to suspension and brake components, outer poke to the fender edge, overall tire diameter change, speedometer impact, and backspacing.
• If anything shows a risk of contact or the tire diameter change is excessive, adjust and recheck.

Confirm final choices against OEM sources for your VIN. Performance trims or larger brake packages can require different clearances.

Fitment Checklist Before You Buy

• Match bolt pattern 5x112 and thread size M14 x 1.25. Verify lug bolt seat type required by the wheel manufacturer.
• Hub bore must center on 66.6 mm. If the wheel bore is larger, plan hub-centric rings to 66.6 mm.
• Offset and width must clear brakes and suspension on the inside and the fender on the outside. Use the calculator to check inner clearance and outer poke.
• Overall tire diameter should remain close to OEM to protect ABS, AWD, and speedometer accuracy. A common guideline is within about 3 percent, but follow BMW guidance for your trim.
• Load rating of wheels and tires must meet or exceed the Gross Axle Weight Rating of the X3. Check stamped ratings.
• TPMS compatibility. Reuse or program compatible sensors for 2021 BMW systems.
• Brake clearance. Test fit the bare wheel to ensure spoke and barrel clearance over calipers.
• Spacers if used must be hub-centric and require longer appropriate bolts. Recheck thread engagement is sufficient.
• Verify your specific trim and brake package. M Performance and larger brake options can change clearance needs.

Plus Sizing And Common Upgrades

Plus sizing changes tire sidewall and wheel diameter while keeping overall tire diameter close to stock. For the 2021 X3, multiple OEM packages existed, including 19 inch and 20 inch equipment. Your safe upgrade path depends on your starting size, trim, and brake package.

• Start from your door placard size. Enter that as Installed on your vehicle in the calculator.
• Increase rim diameter in the calculator, then reduce tire aspect ratio to keep overall diameter near stock. Watch the calculator’s overall diameter and speedometer change fields.
• If you widen the wheel, adjust offset so inner clearance remains safe and outer poke does not contact fenders during compression and steering.
• Staggered vs square. Staggered widths may affect tire rotation and handling balance. Follow BMW recommendations for your trim if you choose staggered.
• When in doubt, test fit a single wheel and perform a full clearance check lock to lock and through suspension travel.

Installation Tips

• Work on a cool vehicle. Chock wheels and support the X3 with properly rated jack stands on solid ground.
• Clean hub faces and wheel mounting pads until bare metal. Remove rust and debris to prevent runout.
• If using hub-centric rings, seat them fully on the wheel and ensure a snug fit on the 66.6 mm hub.
• Hand start all M14 x 1.25 bolts and use a wheel hanger guide pin to align the wheel and protect threads.
• Tighten in a star pattern in stages. Use a calibrated torque wrench to the BMW torque spec for your trim from the owner’s manual or service information.
• After 25 to 50 miles, recheck torque, especially with new wheels or spacers.
• Verify TPMS operation and adjust tire pressures to the door placard values for your load condition.

Tools And Helpful Supplies

• 1/2 inch drive torque wrench
• Wheel hanger guide pin M14 x 1.25
• M14 x 1.25 wheel bolts

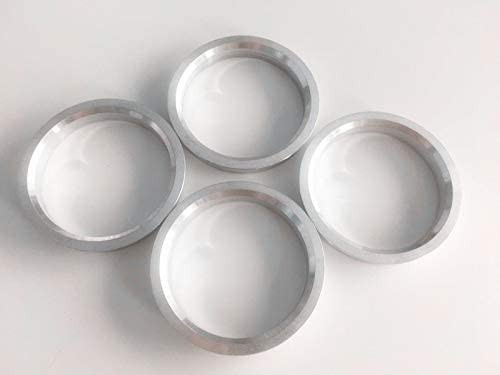

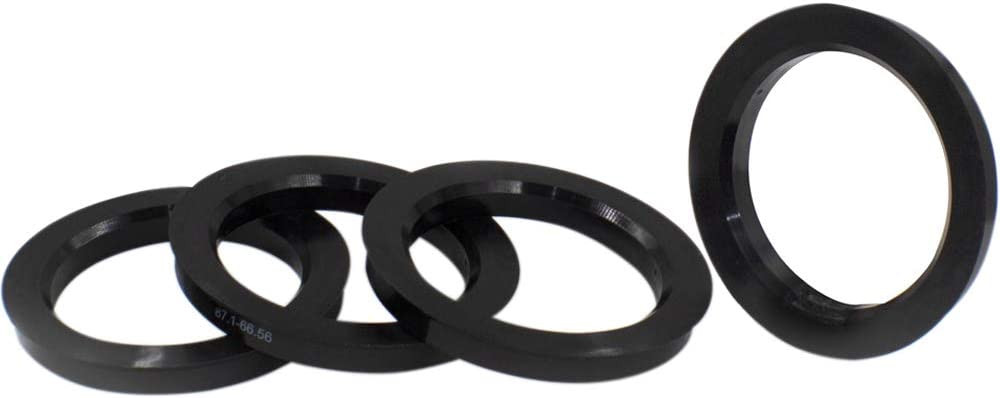

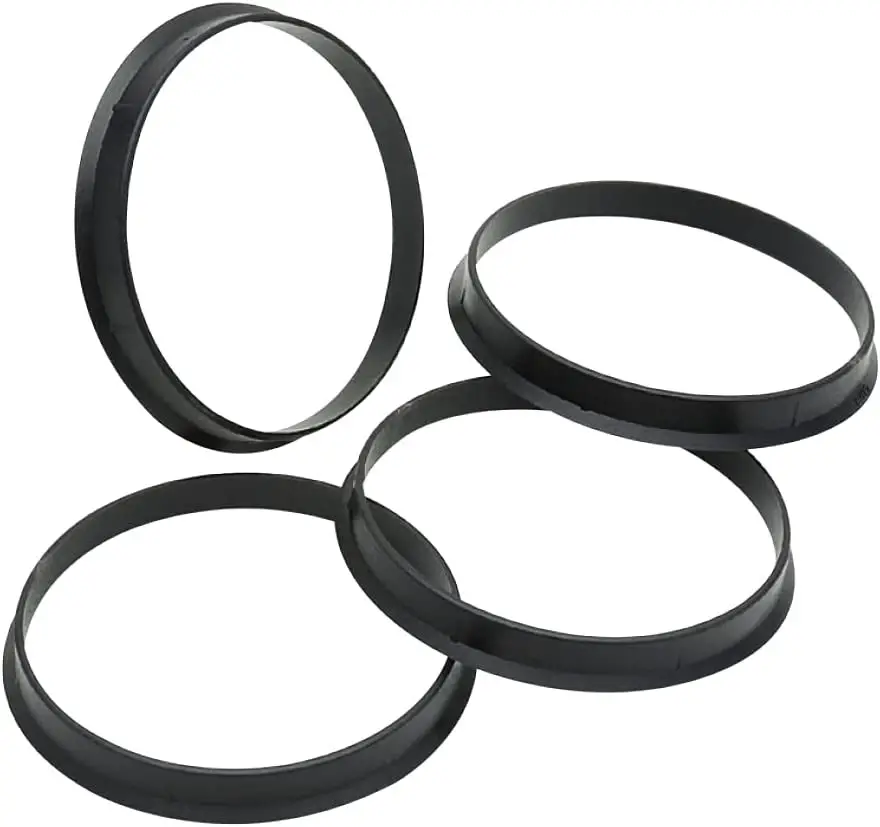

• 66.6 mm hub-centric rings

FAQs

• What is the bolt pattern on the 2021 BMW X3

  5x112.

• What center bore do I need

  66.6 mm. If your aftermarket wheel has a larger bore, use hub-centric rings to 66.6 mm.

• What is the thread size for wheel bolts

  M14 x 1.25. Verify bolt seat type and length are correct for your wheels and any spacers.

• Will 20 inch wheels fit my 2021 X3

  Some 2021 X3 packages used 20 inch wheels. Fitment for your specific trim depends on brake package, offset, and tire diameter. Confirm your OEM size on the door placard and use the calculator to check inner and outer clearance, then test fit.

• Why does the table show a 19 inch tire and a 20 inch wheel

  The data provided reflects multiple OEM packages for the 2021 X3. Verify which package your VIN has and compare using the calculator.

• How much offset change is safe

  There is no single value that fits all trims. Use the calculator to compare inner clearance to struts and brakes and outer poke to fenders. Aim to keep scrub radius and overall track width changes modest and verify with a test fit.

• Do I need new TPMS sensors

  You can reuse compatible sensors if the wheels accept them. If buying new, get sensors compatible with the 2021 BMW system and have them programmed if required.

• What torque should I use on the wheel bolts

  Follow the torque specified in your BMW owner’s manual or service information for your exact trim. Use a calibrated torque wrench and recheck after initial miles.
