OEM wheel and tire fitment specs for the 2019 BMW X3, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.
Recorded OEM specifications for the 2019 BMW X3, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.
Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.
Center-bore records disagree: year-level hub 72.6 mm vs trim range 66.6–66.6 mm. Interchange below does not treat this as an unqualified match.
Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.
Donor vehicles with overlapping OEM specs
These are vehicle-year records whose recorded OEM ranges overlap this 2019 BMW X3. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.
Evaluated 101 donor years. Listed 24 eligible overlaps (not all evaluated years are compatible). Showing all listed.
Hub-centric rings of about 72.6 → 66.6 mm mm may be relevant if the wheel bore is larger than the hub; they cannot enlarge a smaller bore. Approximate position vs the mid OEM package: outer change -3.18 mm, inner change -3.18 mm. This uses aggregated width/offset ranges, not a specific wheel.
Hub-centric rings of about 72.6 → 66.6 mm mm may be relevant if the wheel bore is larger than the hub; they cannot enlarge a smaller bore. Approximate position vs the mid OEM package: outer change -8.18 mm, inner change 1.83 mm. This uses aggregated width/offset ranges, not a specific wheel.
Check wheel configurationCheck lug hardware: donor year M14x1.5 vs 2019 BMW X3 M14x1.25
Bolt pattern5x120 · 5x120
Center bore72.6 mm donor vs hub 66.6 mm
Wheel geometryOEM width/offset ranges overlap (not a specific wheel)
Recorded vehicle-side thread for the 2019 BMW X3 is M14x1.25. This donor year is recorded as M14x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Dataset suggestionHub-centric rings ≈ 72.6 → 66.6 mm – not a verified installation requirement.
Hub-centric rings of about 72.6 → 66.6 mm mm may be relevant if the wheel bore is larger than the hub; they cannot enlarge a smaller bore. Recorded vehicle-side thread differs (M14x1.5 on the donor year vs M14x1.25 on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset. Approximate position vs the mid OEM package: outer change -8.18 mm, inner change 1.83 mm. This uses aggregated width/offset ranges, not a specific wheel.
Recorded vehicle-side thread for the 2019 BMW X3 is M14x1.25. This donor year is recorded as M14x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Dataset suggestionWheel spacer ≈ 21.53 mm – not a verified installation requirement.
Hub-centric rings of about 72.6 → 66.6 mm mm may be relevant if the wheel bore is larger than the hub. A spacer of about 21.53 mm is a dataset suggestion only; clearance is not verified. Recorded vehicle-side thread differs (M14x1.5 on the donor year vs M14x1.25 on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset.
Check wheel configurationCenter-bore records disagree
Bolt pattern5x112 · Same recorded PCD
Center bore66.6 mm · same recorded hub figure
Wheel geometryOEM width/offset ranges overlap (not a specific wheel)
Center-bore records disagree (target year-level hub 72.6 mm vs trim range 66.6–66.6 mm; donor year-level hub 72.6 mm vs trim range 66.6–66.6 mm). Unqualified overlap is not claimed until the conflict is resolved. Approximate position vs the mid OEM package: outer change -3.18 mm, inner change -3.18 mm. This uses aggregated width/offset ranges, not a specific wheel.
Hub-centric rings of about 72.6 → 66.6 mm mm may be relevant if the wheel bore is larger than the hub; they cannot enlarge a smaller bore. Approximate position vs the mid OEM package: outer change 9.52 mm, inner change 9.52 mm. This uses aggregated width/offset ranges, not a specific wheel.
Wheel geometryOEM width/offset ranges overlap (not a specific wheel)
Recorded vehicle-side thread for the 2019 BMW X3 is M14x1.25. This donor year is recorded as M12x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Dataset suggestionHub-centric rings ≈ 72.6 → 66.6 mm – not a verified installation requirement.
Hub-centric rings of about 72.6 → 66.6 mm mm may be relevant if the wheel bore is larger than the hub; they cannot enlarge a smaller bore. Recorded vehicle-side thread differs (M12x1.5 on the donor year vs M14x1.25 on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset. Approximate position vs the mid OEM package: outer change 1.17 mm, inner change 5.18 mm. This uses aggregated width/offset ranges, not a specific wheel.
BMW X3 Years With Compatible Wheels
Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.
Compare a donor vehicle or custom wheel against this 2019 BMW X3. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.
Compare
Compare wheel compatibility between two vehicles
Wheels from (donor vehicle)
Selected Car:
Custom wheel size (optional)
Tip: change values here to simulate custom wheels and immediately see the impact in the comparison below.
Custom tire size (optional)
Installed on (your vehicle)
Selected Car:
2019 BMW X3
Compare Rims
Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x112
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
66.6 mm
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M14 x 1.25
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
19"
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
7.5"
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
32 mm
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-
Compare Tires
Specification
Wheels from
Installed on
Result (Click it)
Section Width
The width of the tire from sidewall to sidewall, measured in millimeters.
-
-
Aspect Ratio
The height of the tire’s sidewall expressed as a percentage of its width.
-
-
Diameter
The wheel diameter for which the tire is designed to fit.
-
-
Tire Pressure
The recommended air pressure for safe and efficient driving.
-
-
Overall Diameter
The total height of the tire and wheel combined affects clearance and speedometer accuracy.
-
-

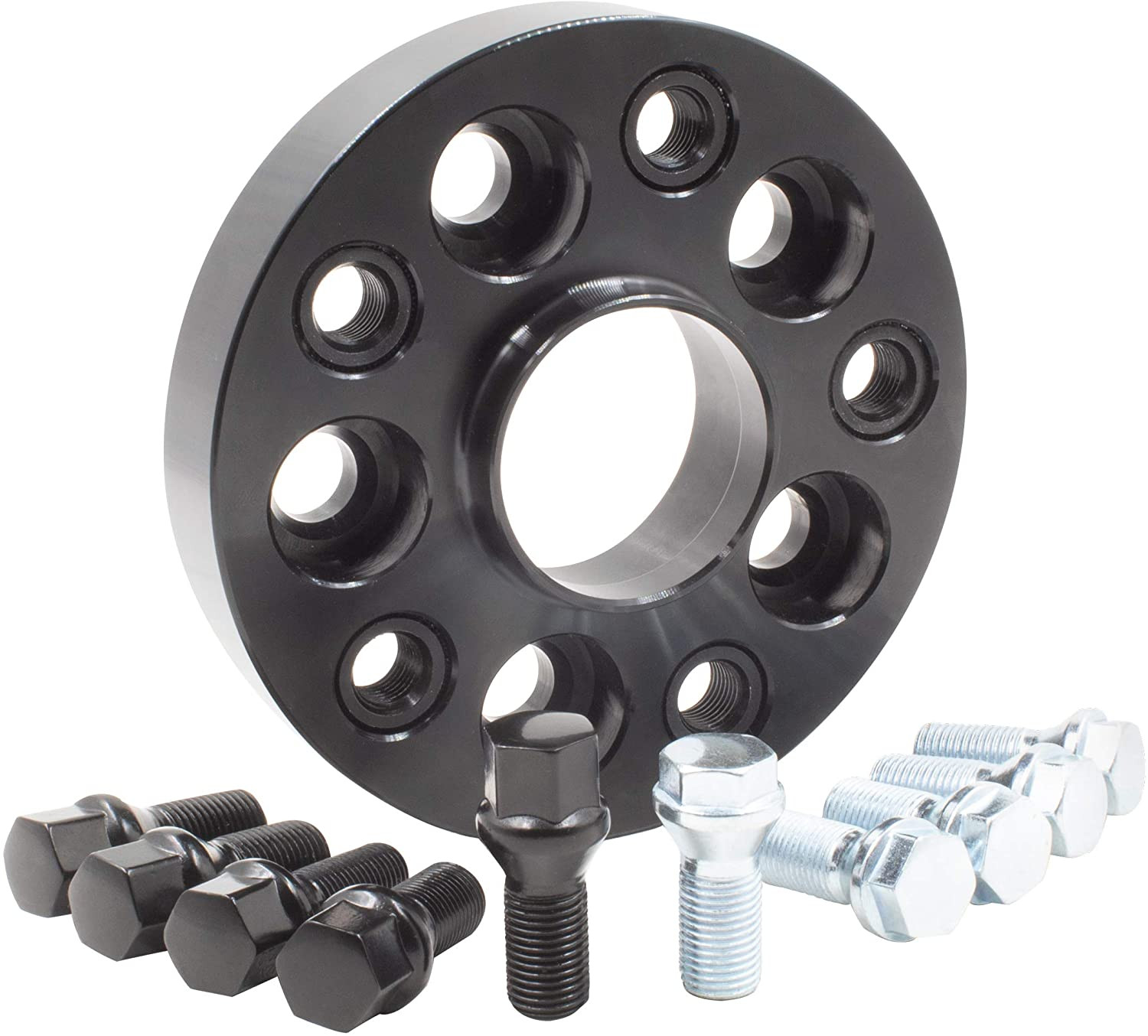

Wheel Fitment Parts for the 2019 BMW X3
Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.
As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.
2019 BMW X3 Wheel Fitment Guide
Known OEM Fitment For 2019 BMW X3
The values below are confirmed entries from the available data for this model year. Wheel and tire specifications can vary by trim, package, region, and option code. If a value is not listed here, do not assume it. Use the on-page calculator and verify against your owner’s manual, the driver-door placard, and BMW service documentation.
Bolt pattern (studs x PCD)
5x120
Center bore
72.6 mm
Thread size
M14 x 1.25
Known OEM wheel
20 x 8.0 in, ET 27, backspacing 5.06 in
Known OEM tire
245/50R19
Notes:
BMW uses lug bolts rather than studs and nuts. The seat style for the bolts depends on the wheel. Verify with the wheel manufacturer or BMW parts data before purchasing hardware.
The presence of both a 20-inch wheel and a 19-inch tire in the data reflects different trims or packages. Use the calculator to match overall tire diameter if you are moving between 19-inch and 20-inch setups.
Backspacing measurements can differ based on measurement conventions. Use the calculator to visualize inner and outer clearance changes when altering wheel width or offset.
How To Use The Wheel Interchange Calculator
The calculator on wheelinterchange.com lets you compare a potential wheel and tire setup against your 2019 BMW X3 to predict clearance and speedometer changes. Follow these steps:
Set Installed on (your vehicle) to 2019 BMW X3.
If you are starting from the known OEM tire size, enter 245/50R19 on the Your vehicle side. That gives you an OEM overall diameter reference.
For a potential upgrade, use the Custom wheel size fields on the Donor vehicle side. Enter the rim diameter, width, and offset you plan to use.
Enter a Custom tire size for the donor side. Adjust section width and aspect ratio until the calculator shows overall tire diameter within about 1 to 2 percent of your OEM reference to minimize speedometer error and keep AWD systems happy.
Watch the inner clearance and outer poke readouts. Positive offset moves the wheel inboard; lower offset pushes it outward. Confirm there is sufficient clearance to the strut, spring perch, and brake calipers on the inside and to the fender and liners on the outside.
If you want to baseline off the known OEM 20 x 8.0 ET 27 wheel, enter that in the Your vehicle side, then compare any alternate wheel widths or offsets in the Donor side to see how clearance changes from that wheel.
Always confirm final choices by measuring your vehicle and, when possible, test fitting a wheel before mounting tires.
Fitment Checklist Before You Buy
Bolt pattern must be 5x120.
Center bore must seat on 72.6 mm. If an aftermarket wheel has a larger bore, use hub-centric rings sized to 72.6 mm at the hub and the wheel’s bore on the outer side.
Thread size is M14 x 1.25. Confirm bolt length and seat style with the wheel supplier. BMW OEM wheels often use a different seat profile than many aftermarket wheels.
Offset and width changes affect inner clearance and fender poke. Verify with the calculator and measure your car. Big-brake options may reduce inner clearance.
Overall tire diameter: keep close to OEM to protect wheel wells, ABS, traction control, and speedometer accuracy.
Load index and speed rating: meet or exceed what is shown on the driver-door placard.
TPMS compatibility: reuse, reprogram, or install compatible sensors per your region’s spec.
If spacers are required, use hub-centric spacers and appropriate longer M14 x 1.25 bolts. Maintain adequate thread engagement as specified by BMW or the hardware supplier.
Plus Sizing And Common Upgrades
The known data for this year includes a 20 x 8.0 ET 27 wheel and a 245/50R19 tire on some trims. If you are moving between 19 and 20 inch setups, your goal is to keep overall tire diameter similar so ride height, gearing, and speedometer remain consistent.
Plus one or plus two changes: increase rim diameter while selecting a tire with a lower aspect ratio so the overall diameter stays near stock.
Width changes: wider wheels can improve grip but reduce inner clearance. Each 0.5 inch added width splits roughly 0.25 inch to each side unless you also adjust offset.
Offset tuning: 5 mm of offset change moves the wheel about 5 mm. Use the calculator to visualize inner clearance to the strut and outer poke at the fender.
AWD note: if your X3 is AWD, keep rolling circumference equal on all four corners and avoid staggered diameters. Width stagger can be acceptable if overall diameters match, but confirm with the calculator and BMW guidance.
Big brakes: if equipped, verify spoke and barrel clearance. Ask the wheel maker for a brake template when available.
Installation Tips
Test fit a bare wheel first. Spin the hub by hand to confirm caliper and suspension clearance.
Clean hub faces and remove corrosion. Any debris can cause vibration.
Use hub-centric rings when the wheel bore is larger than 72.6 mm.
Hand start all M14 x 1.25 bolts and snug in a star pattern. Torque only with a calibrated torque wrench to the BMW-specified value for your trim, then recheck torque after 50 to 100 miles.
If using spacers, ensure they are hub-centric and that bolt length provides proper thread engagement. Re-verify torque.
Have TPMS serviced or programmed as required. After installation, check for warning lights and verify pressure readings.
Perform an alignment check if you changed wheel width, offset, or tire size.
What is the bolt pattern for the 2019 BMW X3? 5x120.
What center bore does it use? 72.6 mm. Use hub-centric rings if your aftermarket wheel has a larger center bore.
What is the thread size for the lug hardware? M14 x 1.25. Confirm the bolt seat style with the wheel manufacturer before buying hardware.
Is a 20-inch wheel compatible? The known data includes a 20 x 8.0 in wheel with ET 27 for this model year. Trim and package differences exist, so confirm by VIN or the door-jamb placard and verify clearances with the calculator.
What OEM tire size is listed? 245/50R19 is listed in the known data. Tire sizes can vary by trim or package, so check your door placard to confirm your vehicle’s exact specification.
What torque should I use on the lug bolts? The exact torque can vary by trim and wheel. Refer to your owner’s manual or BMW service documentation. Use a calibrated torque wrench and recheck after 50 to 100 miles.
Do I need hub-centric rings? Only if the wheel’s center bore is larger than 72.6 mm. Select rings that are 72.6 mm on the hub side and match the wheel’s bore on the other side.
Can I use wheel spacers? Use only quality hub-centric spacers and ensure proper bolt length and thread engagement. Re-verify clearances and torque, and understand that spacers effectively reduce offset.
How close should the new tire diameter be to stock? As a general guideline, keep overall diameter within about 1 to 2 percent of stock. Use the calculator to compare and aim to minimize speedometer error and clearance issues.
Use the calculator on wheelinterchange.com to confirm final selections. When in doubt, measure twice and consult BMW documentation before you buy.
Methodology and sources
Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:
Bolt pattern / PCD
Center bore direction (donor wheel bore must not be smaller than the hub)
Wheel diameter, width, and offset against known OEM ranges
A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
