2011 Chevrolet Silverado 2500HD Wheel Interchange

2011 Chevrolet Silverado 2500HD Wheel Fitment Guide

Known OEM Fitment For 2011 Chevrolet Silverado 2500HD

Important: 8x180 is unique and is not interchangeable with 8x165.1 or 8x170. Always match the bolt pattern exactly.

How to confirm the missing OEM values for your specific truck:

• Check the Tire and Loading Information label on the driver door jamb. It lists the OEM tire size. The R number in the tire size tells you the wheel diameter. You can enter that tire size in the calculator to establish a baseline.
• Verify wheel size and offset in the owner manual or GM service information for your VIN. Dealers can also look this up.
• Measure an existing wheel. Width is measured bead seat to bead seat, not outer lip. Backspacing is measured from the hub mounting pad to the inner rim edge. Offset can then be calculated.
• Use the on-page calculator to compare your current setup to potential wheels and tires and to visualize clearance and diameter differences.

How To Use The Wheel Interchange Calculator

The calculator lets you compare Wheels from the donor vehicle against Installed on your vehicle and also test a Custom wheel size and Custom tire size. Follow these steps:

• Select Installed on as 2011 Chevrolet Silverado 2500HD. If your exact trim is selectable, choose it, since diameters and offsets can vary by trim.
• If you know your current tire size from the door sticker, enter it so the tool uses an accurate baseline diameter.
• For Wheels from, pick the donor vehicle you are considering. If you are buying aftermarket, use the Custom wheel size fields to enter the rim diameter, width, and offset you want to test.
• Use Custom tire size to set the section width and aspect ratio. Changing rim diameter will update the overall tire diameter in the comparison, so you can see speedometer error and fender clearance changes.
• Watch the inner clearance and outer poke readouts. Inner clearance must remain adequate for control arms, knuckles, leaf springs, and wheel well liners. Outer poke should not extend past the fender unless you plan for coverage and local regulations allow it.
• Keep overall tire diameter close to stock. Many owners target within about 3 percent to keep ABS, gearing, and speedometer close. Confirm what is acceptable for your use and local regulations.
• Confirm load index of the tire and load rating of the wheel meet or exceed the truck’s GAWR values on the door jamb label.
• Use the results to decide if you need a different offset, a narrower or wider wheel, or a different tire profile to avoid rubbing.

Fitment Checklist Before You Buy

• Bolt pattern: Must be 8x180.
• Center bore: The hub is 124.1 mm. A wheel with a smaller bore will not fit. A larger bore can fit with 124.1 mm hub-centric rings to keep the wheel centered.
• Threads: M14 x 1.5. Match lug nuts to both the stud thread and the wheel’s seat type. Do not mix conical, mag, or ball seats.
• Load rating: Wheel and tire load ratings must meet or exceed the axle ratings on your door jamb label.
• Offset and backspacing: Use the calculator to maintain adequate inner clearance to suspension and brakes while keeping outer poke within the fenders.
• Brake and hub clearance: Verify spoke and barrel clearance over front calipers and that the hub face sits flat with no interference.
• TPMS: Ensure sensor compatibility and relearn procedure for your model year. Some aftermarket wheels need valve-mounted sensors with correct angle.
• Spare tire and rotation: Make sure your spare fits the axle and brake package and that your set allows full rotation patterns if desired.
• Legal and inspection: Some jurisdictions require full tire coverage by fender or flares. Check local rules.

Plus Sizing And Common Upgrades

Wheel and tire sizes on the Silverado 2500HD vary by trim. If you are increasing wheel diameter or width, use these guidelines and the calculator to maintain safe clearances and performance:

• Keep overall tire diameter close to OEM. Many target within about 3 percent difference to avoid drivability and calibration issues.
• Adjust offset when changing wheel width. Every 1.0 inch change in wheel width changes inner and outer position by about 12.7 mm. To keep inner clearance similar, reduce offset by roughly half the added width in millimeters. Example: going from 8.0 in width at +40 mm to 9.0 in width, a target offset near +27 mm keeps the inner lip similar.
• Check brake barrel clearance. Larger diameter wheels often clear larger brakes, but spoke design and barrel shape still matter.
• All-terrain or mud-terrain tires often run wider than their labeled size. Leave extra margin in the calculator for section width growth, especially on wider wheels.
• Match tire load index to heavy duty needs. Choose LT-rated tires with a load index that meets or exceeds the door jamb rating for your axle.

Installation Tips

• Inspect and clean the hub face and wheel mounting pad. Remove rust and debris so the wheel seats flat.
• If using hub-centric rings, install rings fully against the wheel bore and ensure a snug fit over the 124.1 mm hub.
• Hand start all lug nuts to avoid cross-threading. Use the proper socket that matches the lug seat design.
• Tighten in a star pattern in multiple passes to the OEM torque specification for your truck. Do not lubricate lug threads unless specified by OEM. If any studs or nuts feel rough or stretch, replace them.
• Re-torque after 50 to 100 miles of driving and again after any heavy towing or off-road use.
• Perform a full lock-to-lock steering check and suspension compression check to verify no rubbing on liners, control arms, sway bar, or fenders.
• Complete TPMS relearn and confirm there are no tire pressure or ABS warnings.

Tools And Helpful Supplies

• 1/2 inch drive torque wrench: Search on Amazon
• M14 x 1.5 lug nuts that match your wheel seat type: Search on Amazon
• 124.1 mm ID hub-centric rings for your wheel’s bore: Search on Amazon
• GM TPMS relearn tool or universal trigger tool: Search on Amazon

FAQs

What is the bolt pattern and center bore for the 2011 Silverado 2500HD?
Bolt pattern is 8x180 and center bore is 124.1 mm. Thread size is M14 x 1.5.

Can I use 8x6.5 or 8x170 wheels on this truck?
No. Those patterns do not match 8x180. The studs will not align and the wheel will not seat correctly. Always use an exact 8x180 pattern.

What offset or backspacing do I need?
It varies by trim, brake package, and the wheel width you choose. Use the calculator to compare inner clearance and outer poke relative to your current setup. If you do not know your stock wheel specs, confirm them from the door sticker, owner manual, dealer, or by measuring your current wheels.

Do I need hub-centric rings for aftermarket wheels?
If the wheel’s center bore is larger than 124.1 mm, use rings with a 124.1 mm inner diameter and the wheel bore as the outer diameter. If the wheel bore is smaller than 124.1 mm, the wheel will not fit without machining, which is not recommended for safety.

What tire size will fit without rubbing?
This depends on your trim, suspension, and wheel offset. Enter your current tire size in the calculator, then test candidate sizes. Keep overall diameter close to stock and verify inner clearance and fender coverage at full steering lock and through suspension travel.

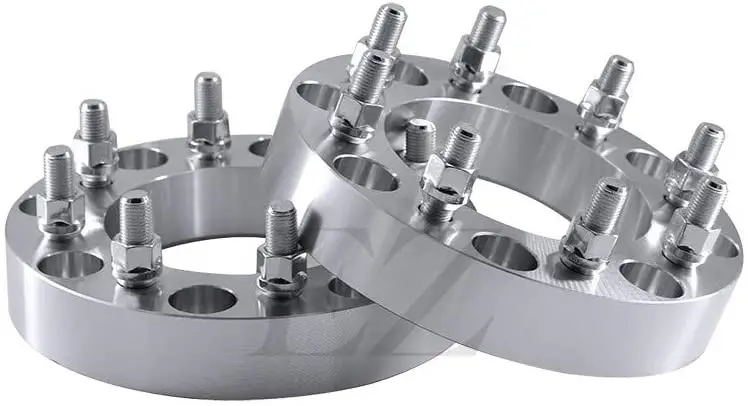

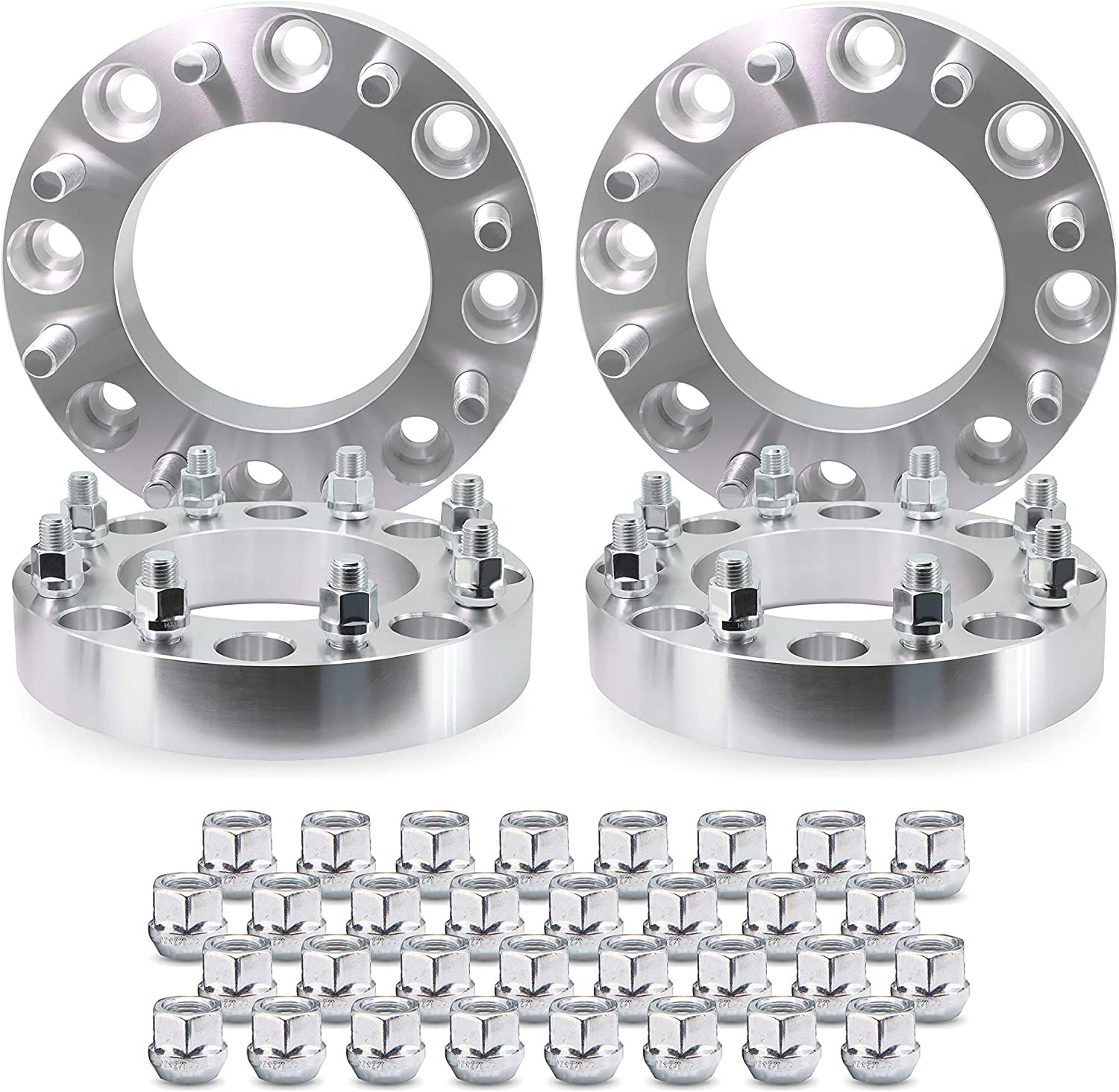

Can I use spacers or adapters?
Spacers and adapters add complexity on heavy duty trucks. If you choose to use them, select hub-centric, high-strength units that match 8x180 and maintain full thread engagement. Re-torque frequently. Note that spacers may affect wheel bearing life and may not be legal in all areas. OEMs generally do not endorse them.

What is the correct lug nut torque?
The torque specification can vary by wheel and trim. Always use the value in your owner manual or service information. Tighten in a star pattern in stages and re-torque after 50 to 100 miles.

How do I find my exact OEM wheel size if it is not on the wheel?
Use the door jamb tire size to infer rim diameter from the R number, check the owner manual or dealer service info for wheel width and offset, or measure your current wheel’s width and backspacing to calculate offset.
