2001 Ford Expedition Wheel Fitment and Interchange Guide
Use this page to review the known wheel and tire fitment information for the 2001 Ford Expedition, compare donor wheels, and check custom wheel and tire combinations. Always confirm the final fitment against the vehicle identification number, door-jamb tire label, owner’s manual, wheel markings, and an OEM or qualified wheel retailer source before purchasing.
Known OEM Fitment For 2001 Ford Expedition
The following specifications are the known values available for this vehicle. Trim, drivetrain, production date, replacement wheels, and source-data differences can affect fitment, so treat these figures as a starting point rather than a substitute for physical verification.
| Specification |
Known value |
| Bolt pattern |
5x135, meaning 5 studs on a 135 mm pitch circle diameter |
| Center bore |
87.1 mm |
| Thread size |
M12 x 1.75 |
| Rim diameter |
17 inches |
| Rim width |
7.5 inches |
| Wheel offset |
ET 14 mm |
| Backspacing |
4.3 inches |
| Tire section width |
255 mm |
| Tire aspect ratio |
70 percent |
| Tire rim diameter |
16 inches |
There is an apparent diameter conflict in the supplied data: the known rim diameter is listed as 17 inches, while the tire rim diameter is listed as 16 inches. A tire marked with an R16 designation requires a 16-inch wheel, not a 17-inch wheel. Confirm the actual tire sidewall, wheel stamp, door-jamb label, and OEM documentation before ordering. Do not mount a tire to a wheel with a different bead-seat diameter.
How To Use The Wheel Interchange Calculator
Start with the calculator’s “Wheels from (donor vehicle)” field and select or enter the donor vehicle and wheel information. Then use “Installed on (your vehicle)” for the 2001 Ford Expedition. The comparison is intended to help you review bolt pattern, center bore, rim size, offset, backspacing, and tire dimensions.
Use the custom wheel size controls to enter a proposed rim diameter, rim width, and offset. Use the custom tire size controls to enter section width and aspect ratio. When you change the rim diameter, the calculator updates the tire diameter in the comparison, which helps you identify changes in overall diameter and potential speedometer or clearance effects.
Calculator results are not a substitute for a test fit. Confirm that the donor wheel has the correct bolt pattern, adequate center-bore compatibility, suitable load capacity, and enough clearance for the brake caliper, suspension, steering components, and fender. If the calculator flags an unknown or conflicting value, verify it with the wheel manufacturer and Ford documentation.
Fitment Checklist Before You Buy
- Confirm the 5x135 bolt pattern and verify the wheel’s actual stud-hole pattern.
- Compare the wheel center bore with the vehicle hub. A smaller bore will not fit over the hub. A larger bore may require properly sized hub-centric rings where appropriate.
- Verify the wheel’s offset and backspacing. Changes can affect inner suspension clearance, outer fender clearance, steering feel, and scrub geometry.
- Match the wheel diameter to the tire’s rim diameter. Resolve the supplied 17-inch and 16-inch discrepancy before purchase.
- Check wheel width, tire section width, load rating, speed rating, and inflation requirements against the vehicle and tire manufacturer information.
- Inspect the wheel for cracks, bends, corrosion, damaged bead seats, elongated holes, or missing safety-hump features.
- Confirm that the wheel uses compatible lug nuts and that the lug-seat style matches the wheel.
- After installation, check clearance at full steering lock and through suspension travel. Do not rely only on a stationary visual check.
Plus Sizing And Common Upgrades
Plus sizing normally changes wheel diameter while reducing tire sidewall height so the overall tire diameter remains close to the original. The calculator can show how a proposed rim diameter, width, offset, section width, and aspect ratio compare with the known values.
Because the supplied data contains both a 17-inch rim value and a 16-inch tire rim value, do not assume which package is correct for every 2001 Ford Expedition. Confirm the original package for the specific vehicle first. A larger wheel or wider tire can change ride comfort, steering response, road-noise levels, wheel protection, and clearance. It can also create interference that is not visible until the suspension compresses or the steering is turned.
There is no universal upgrade that is safe for every trim or modification level. Use the calculator to compare dimensions, then confirm the proposed combination with a tire manufacturer fitment guide, wheel manufacturer specifications, and an experienced installer.
Installation Tips
Clean the hub face and wheel mounting surface before installation. Rust, dirt, paint buildup, or debris between these surfaces can prevent the wheel from seating correctly and may cause vibration or loss of clamping force.
Install compatible lug nuts by hand first to avoid cross-threading. Tighten them in a star or crisscross pattern, then use a calibrated torque wrench at the vehicle or wheel manufacturer’s specified torque. The correct torque value is not provided here, so obtain it from Ford service information, the owner’s manual, or the wheel manufacturer.
After lowering the vehicle, recheck torque and inspect for contact between the wheel, tire, brake components, suspension, and body. Recheck lug torque after the first short drive and follow the vehicle and wheel manufacturer’s maintenance guidance. Stop driving if you notice vibration, rubbing, looseness, or steering changes.
Tools And Helpful Supplies
Useful items for a careful wheel swap include a calibrated torque wrench, vehicle-rated jack stands, a properly rated floor jack, a lug-nut socket set, a wire brush for hub cleaning, and a tread-depth or tire-pressure gauge. A calibrated automotive torque wrench can help achieve the specified lug-nut torque, while vehicle-rated jack stands are essential when supporting a vehicle during wheel removal.
Never work under a vehicle supported only by a jack. Use level ground, engage the parking brake, secure the wheels that remain on the ground, and follow the jack and jack-stand manufacturer’s instructions.
FAQs
What is the bolt pattern for the 2001 Ford Expedition?
The known bolt pattern is 5x135. Confirm the wheel’s marking or manufacturer specification before purchase because a similar-looking pattern is not interchangeable.
What is the center bore?
The known center bore is 87.1 mm. A wheel bore that is too small cannot pass over the hub. A larger bore may need correctly sized hub-centric rings when compatible with the wheel and application.
What wheel size should I use?
The supplied OEM information lists a 17-inch rim diameter and 7.5-inch rim width, with an ET 14 mm offset. However, the supplied tire rim diameter is 16 inches. Verify the actual vehicle package using the tire sidewall, wheel markings, door-jamb label, and OEM sources before selecting a replacement.
Can I use wheels from another vehicle?
Use the wheel interchange calculator to compare the donor vehicle with the 2001 Ford Expedition. A match requires more than the bolt pattern. Also check center bore, diameter, width, offset, backspacing, load capacity, lug-seat style, brake clearance, and tire compatibility.
Will changing wheel diameter change tire diameter?
Changing wheel diameter requires a tire with a matching rim diameter. The calculator updates tire diameter when the rim diameter changes, allowing you to compare the proposed combination with the known setup. Always verify the final tire size and clearance physically.
Do I need hub-centric rings?
Only when the wheel’s center bore is larger than the vehicle hub and the wheel manufacturer permits their use. Rings must match the hub and wheel accurately. They cannot correct a wheel with a bore that is too small.

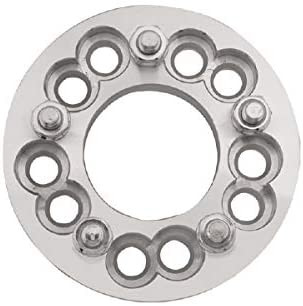

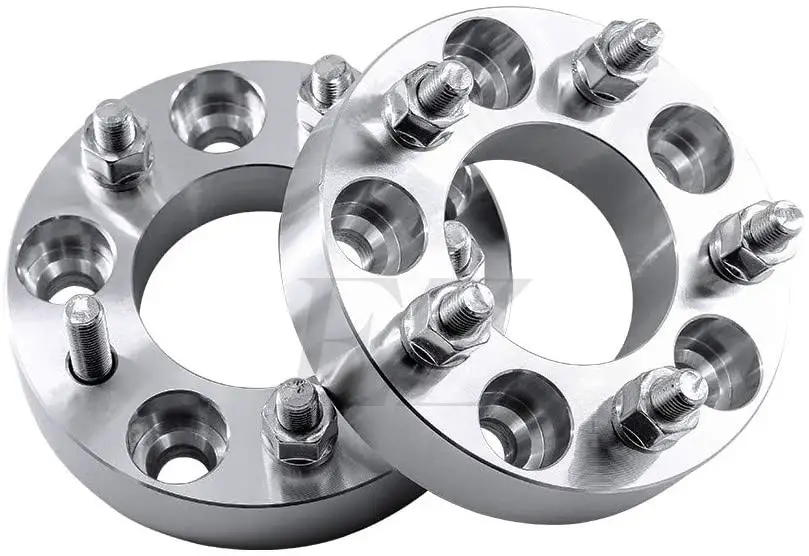

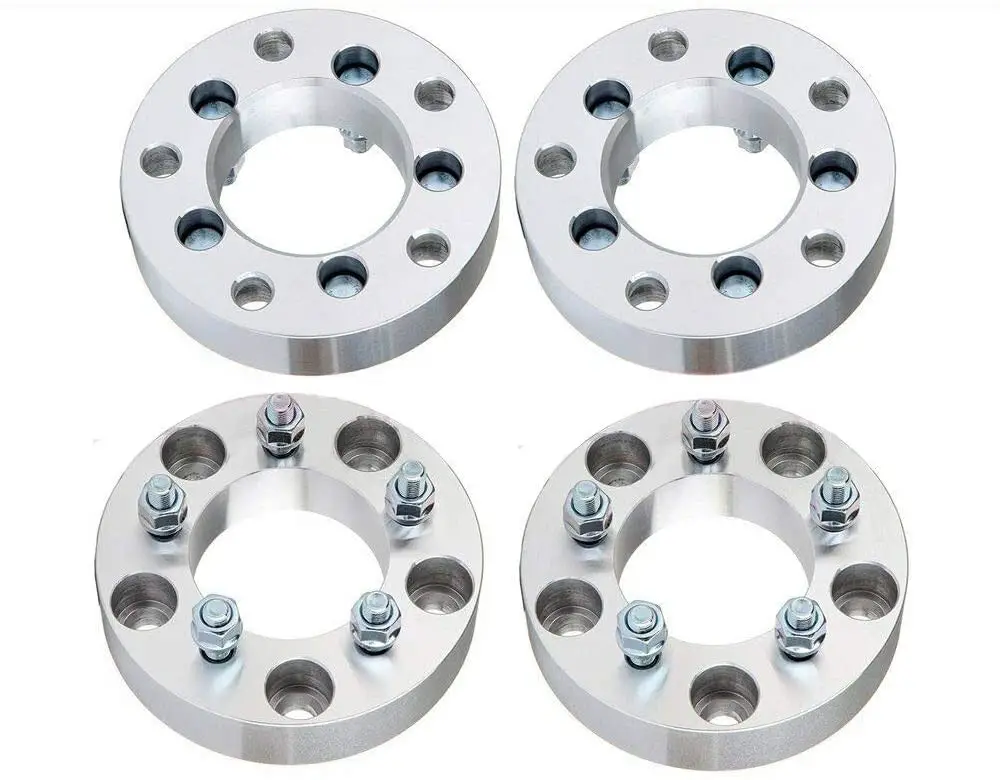

Can wheel spacers solve an offset problem?
Spacers change wheel position and can reduce inner clearance, increase outer poke, and alter wheel bearing and steering loads. Their use must be approved for the vehicle and wheel, with correct hardware and installation procedures. Do not use spacers to compensate for an incorrect bolt pattern or center bore.
Where can I confirm the final specifications?
Check the driver’s door-jamb label, owner’s manual, Ford service information, markings cast or stamped on the wheel, and the tire and wheel manufacturer’s fitment data. If those sources disagree, have a qualified tire and wheel professional inspect the vehicle before ordering.
