What Is a Wheel Bolt?

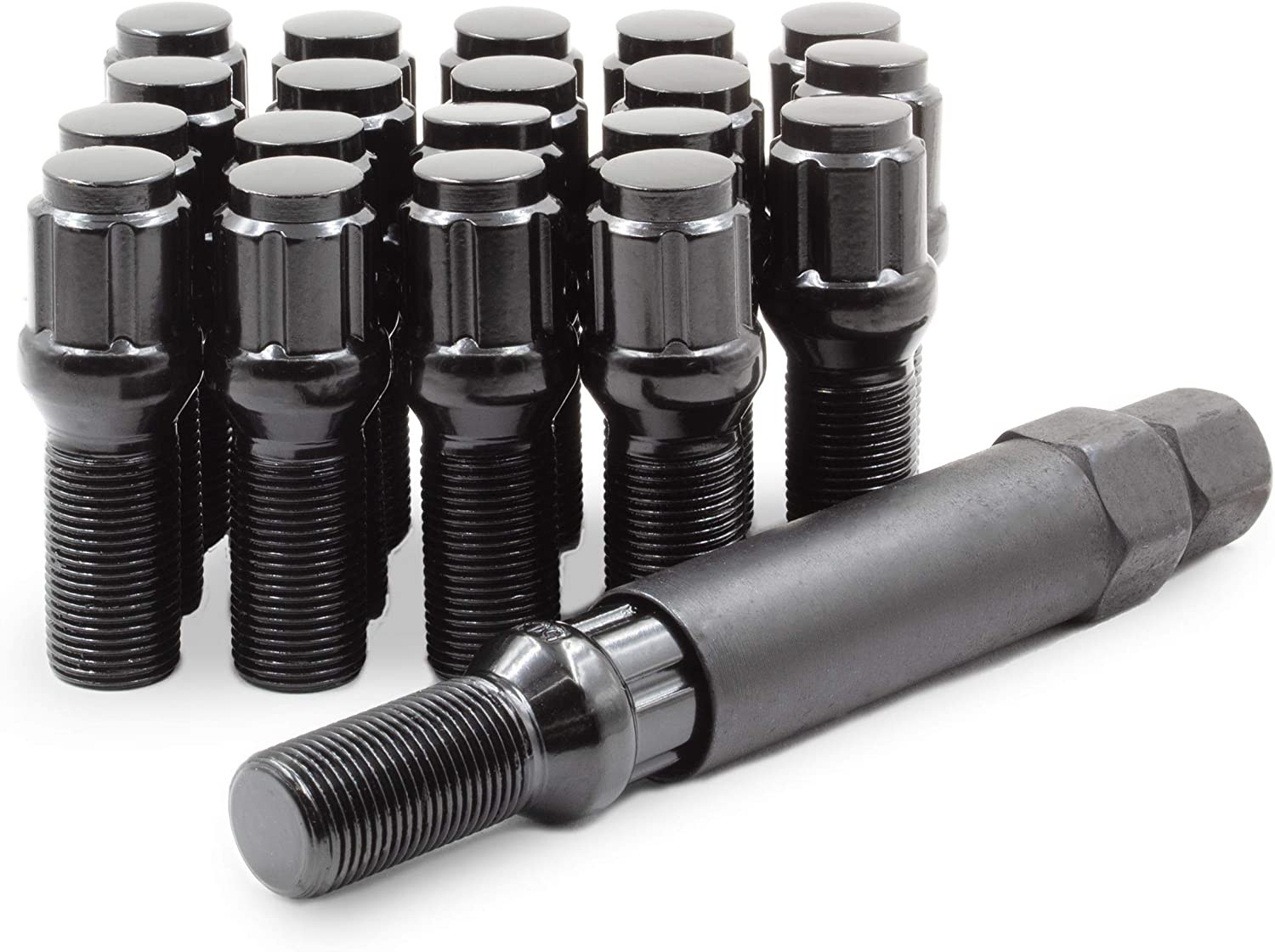

A wheel bolt, also called a lug bolt, is a threaded fastener used to secure a wheel to a vehicle hub. Unlike a lug nut system, where studs extend from the hub and nuts tighten onto them, a wheel-bolt system uses removable bolts that pass through the wheel and thread into tapped holes in the hub.
The bolt does more than hold the wheel in place. Its head or seating surface centers and clamps the wheel against the hub, while the threaded portion provides the clamping force needed to keep the wheel securely mounted.
How a Wheel Bolt Works
During installation, the wheel is positioned over the hub and its bolt holes are aligned with the threaded holes in the hub. Each wheel bolt is inserted through the wheel and tightened into the hub using the specified torque.
A wheel bolt typically has several important features:
- Thread diameter and pitch: Must match the threaded holes in the hub.
- Threaded length: Must provide sufficient engagement without bottoming out in the hub.
- Seat type: The underside of the bolt head must match the wheel’s bolt-seat shape, such as a conical or ball-style seat.
- Head or wrench size: Must fit the tool used for installation and removal.
- Strength and material: Must be suitable for wheel service and the vehicle’s application.
The bolt seat is especially important. A bolt with the wrong seat may contact the wheel incorrectly, reducing the clamping area or damaging the bolt hole even if its thread fits the hub.
Why Wheel Bolts Matter for Wheel Fitment
Wheel bolts are part of the wheel’s complete fitment, not a separate detail that can always be reused. A replacement or aftermarket wheel must have bolt holes that accept the correct bolt-seat style and provide adequate clearance around the bolt head.
The wheel must also match the target vehicle’s bolt pattern / PCD. PCD describes the number of mounting holes and the diameter of the circle through their centers. A wheel with the wrong PCD cannot be made compatible simply by using different wheel bolts. A normal wheel spacer moves the wheel outward but does not change the bolt pattern.
Even when the PCD matches, complete compatibility is not guaranteed. Fitment may also depend on:
- Hub and wheel center bore
- Wheel diameter and width
- Offset and resulting clearance
- Brake-caliper clearance
- Suspension and fender clearance
- Wheel-bolt seat design
- Thread size and pitch
- Required bolt length and thread engagement
- Correct tightening torque
For example, a donor wheel may have the correct PCD for the target vehicle but still require different wheel bolts because its seats are shaped differently or its bolt holes are designed for a different bolt-head profile. That situation is not automatically a Direct Fit; it may be a Direct Fit – Hardware Note or Check Fitment, depending on the verified specifications.
Wheel Bolt vs. Lug Nut
A wheel bolt threads into the hub, while a lug nut threads onto a wheel stud. These systems are not interchangeable without changing the relevant hub and wheel hardware. A wheel designed for lug nuts may not be suitable for a vehicle that uses wheel bolts, and a wheel-bolt application requires enough clearance for the bolt to pass through the wheel and engage the hub.
Do not select a bolt based only on its visible head or the outside diameter of the wheel hole. The hub’s thread specification, the wheel’s seat, and the usable thread length all need to agree.
Common Wheel-Bolt Mistakes
- Using the wrong seat type: Conical and ball-style seats do not clamp the wheel in the same way.
- Choosing a bolt that is too short: It may not achieve adequate thread engagement.
- Choosing a bolt that is too long: It can bottom out in the hub or interfere with components behind it before the wheel is clamped securely.
- Assuming matching PCD is enough: Bolt pattern is only one part of wheel compatibility.
- Forcing a bolt by hand or with an impact tool: Cross-threading can damage the hub threads.
- Reusing damaged or corroded hardware: Damaged threads or seating surfaces can prevent reliable clamping.
- Ignoring torque requirements: Both under-tightening and over-tightening can create safety and service problems.
Wheel bolts should normally be started by hand to confirm that the threads engage smoothly. Final tightening should follow the vehicle or wheel manufacturer’s specified torque procedure, typically with the wheel seated evenly against the hub.
What to Check Before Using a Wheel Bolt
Before fitting a wheel, verify the wheel-bolt specifications for the target vehicle and the wheel itself:
- Confirm that the wheel’s hole count and PCD match the hub.
- Confirm the hub thread diameter and pitch.
- Match the bolt seat to the wheel’s seat.
- Check the required bolt length and usable thread engagement.
- Confirm that the bolt head fits within the wheel’s recess and accepts the correct tool.
- Check center bore, offset, brake clearance, and other wheel dimensions separately.
- Tighten the bolts in the recommended sequence and to the specified torque.
A wheel bolt is therefore a small but critical part of wheel fitment. The wheel may appear to mount correctly while still being unsafe if the bolt seat, thread, length, or clamping procedure is wrong.
