2021 BMW X5 Wheel Interchange

2021 BMW X5 Wheel Fitment And Interchange Guide

Known OEM Fitment For 2021 BMW X5

The values below reflect known OEM specifications for at least one factory configuration of the 2021 BMW X5. Other trims and option packages may differ. If a value is not listed here, verify it on your door jamb label, owner manual, or BMW parts catalog, then confirm with the on-page calculator.

Using the provided 275/45R20 tire size, the approximate overall tire diameter is about 29.7 in. Keep your custom setups near this diameter unless you intentionally want to change gearing and speedometer behavior.

How To Use The Wheel Interchange Calculator

The calculator on wheelinterchange.com compares Wheels from donor vehicle versus Installed on your vehicle to help you visualize offset, inner clearance, poke, and tire diameter changes.

• Set Installed on to 2021 BMW X5, then load or enter the known OEM wheel and tire sizes shown above.
• Pick a donor vehicle or enter a Custom wheel size and Custom tire size to simulate potential swaps.
• Adjust rim width and offset to see inner clearance to the strut and brake, and outer poke toward the fender.
• Change rim diameter and the tire section width or aspect ratio to keep overall tire diameter close to stock.
• Review the calculator’s inner clearance and outer position deltas. Aim to avoid losing inner clearance and avoid excessive outward poke that could contact fenders under compression or steering.
• If the donor wheel has a larger center bore than 66.6 mm, plan on hub-centric rings sized to 66.6 mm for a vibration-free fit. If the bore is smaller than 66.6 mm, it will not fit without machining.
• When results look promising, verify physically: check brake caliper and barrel clearance, hub seating, and fender clearance on the vehicle before mounting tires.

Fitment Checklist Before You Buy

• Bolt pattern: Must be 5x112.
• Center bore: Wheel bore must be 66.6 mm or larger with hub-centric rings to 66.6 mm.
• Offset and width: Use the calculator to confirm inner clearance to suspension and brakes, plus outer fender clearance at full lock and full compression.
• Brake clearance: Confirm the wheel’s inner barrel clears calipers and any wheel weights. Test fit one corner before mounting tires.
• Thread size and seat type: Threads are M14 x 1.25. Seat type depends on the wheel. Match the wheel manufacturer’s seat profile and use appropriate length hardware.
• Load rating: Wheels and tires must meet or exceed the X5’s axle and GVWR requirements. Check load index on tires and wheel load ratings from the manufacturer.
• TPMS: Match the correct TPMS type and frequency for your VIN. Relearn or program per BMW procedures after installation.
• Speedometer and ABS aids: Keep overall tire diameter close to stock to maintain proper speedometer, ABS, and stability control behavior.
• Alignment: After significant changes to wheel width or offset, get a professional alignment to maintain handling and tire wear.
• Return policy: Confirm the seller’s return policy in case of unexpected interference.

Plus Sizing And Common Upgrades

Plus sizing can sharpen handling and styling, but clearances tighten as diameter and width increase. Use the calculator to model changes from the OEM 20 x 9.0 wheel and 275/45R20 tire baseline, which is about 29.7 in in overall diameter.

• Wider wheels or tires: Increase width carefully and adjust offset to keep inner and outer clearances safe. Lower ET moves the wheel outward, higher ET pulls it inward.
• Staggered setups: Some packages may use wider rears. If you pursue staggered sizing, confirm that front and rear rolling diameters remain close to stock and compatible with AWD systems.
• Larger diameters: As wheel diameter increases, choose lower-profile tires that maintain overall diameter. Watch barrel-to-caliper clearance, which can change with wheel design.
• Winter setups: Many owners prefer narrower winter tires for snow performance. Keep the overall diameter close to 29.7 in and verify brake clearance with the specific wheel design.

Installation Tips

• Test fit first: Bolt up one front and one rear wheel without the tire to check hub seating, caliper clearance, and stud engagement.
• Clean mounting faces: Remove rust and debris from the hub and wheel mounting pad. A very light film of anti-seize on the hub center can help prevent future sticking. Do not contaminate brake surfaces.
• Use correct hardware: Match thread size M14 x 1.25 and the wheel’s required seat type. Verify proper engagement before lowering the vehicle.
• Torque properly: Tighten bolts in a star pattern with a calibrated torque wrench to the value specified in the BMW owner manual or service literature. Re-torque after 50 to 100 miles.
• Check clearances: With the vehicle on the ground, turn the steering from lock to lock and compress the suspension to check for any rubbing.
• TPMS and iDrive: After installation, perform the TPMS reset or relearn sequence via the iDrive menu, then verify pressures when cold.

Tools And Helpful Supplies

• 1/2 in drive torque wrench for accurate final tightening Shop options
• Wheel hanger guide pin for M14 x 1.25 to help align heavy wheels Shop options

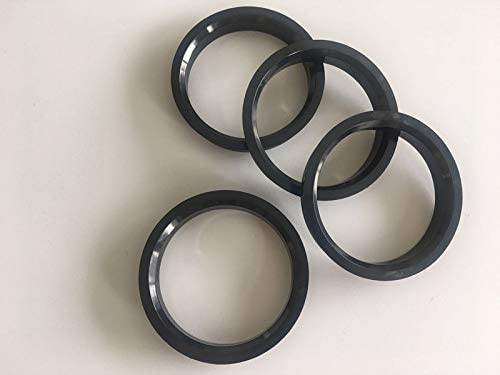

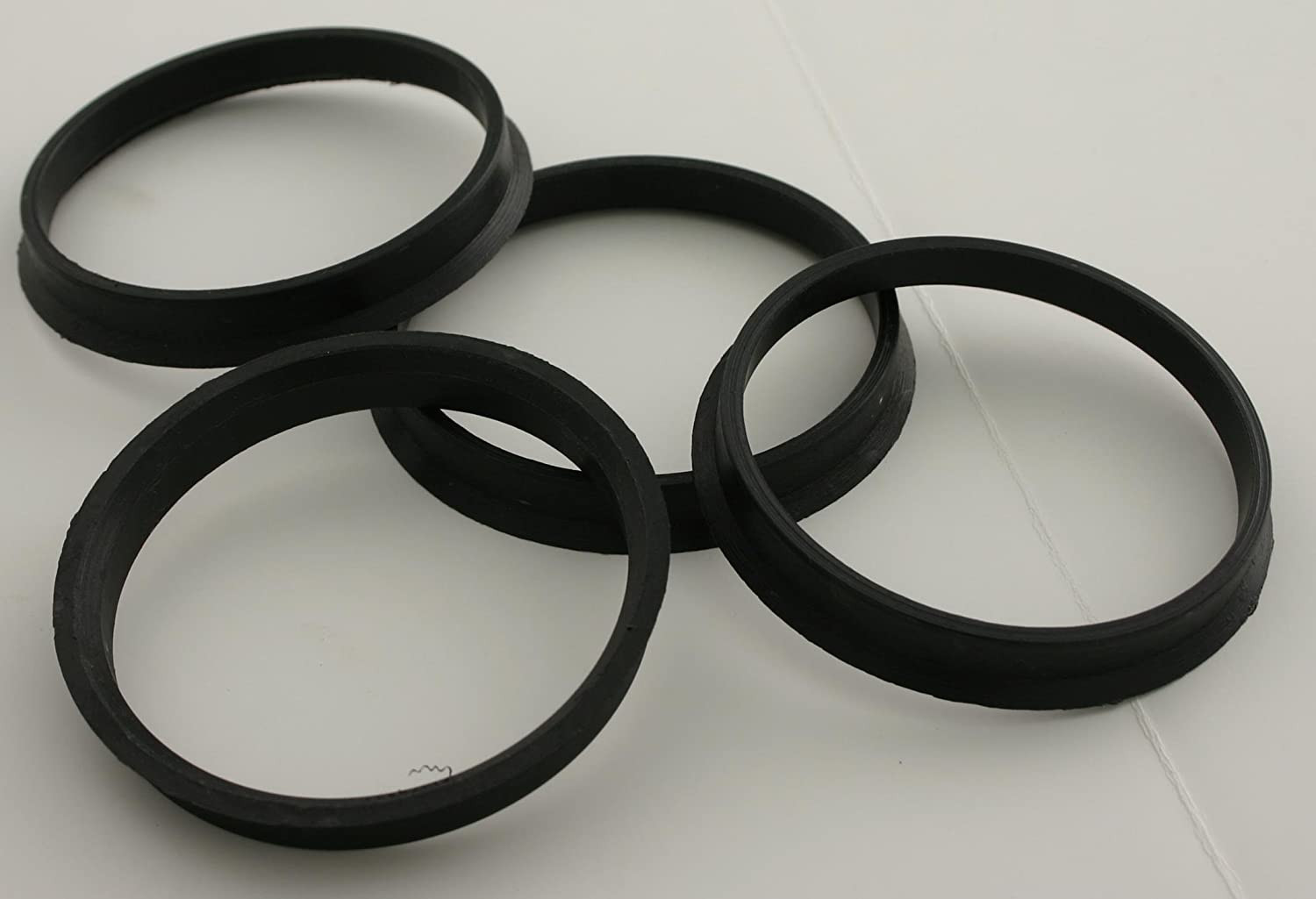

• Hub-centric rings sized to 66.6 mm if your aftermarket wheel bore is larger Shop options
• M14 x 1.25 lug bolts matched to your wheel’s seat type and length Shop options

FAQs

• Which other vehicle wheels will fit my 2021 BMW X5?

  Use the on-page calculator to compare any donor vehicle to your X5. Match the bolt pattern 5x112, ensure the center bore is 66.6 mm or use rings if larger, use M14 x 1.25 hardware with the correct seat type, and verify offset, inner clearance, and brake caliper clearance before purchase.

• Can I run a staggered setup?

  Some packages may use staggered wheels. If you choose staggered sizes, keep overall tire diameters closely matched front to rear, verify AWD compatibility, and use the calculator to confirm inner and outer clearances for both axles.

• Do I need hub-centric rings with aftermarket wheels?

  If the wheel’s center bore is larger than 66.6 mm, yes, use hub-centric rings sized to 66.6 mm. If the bore is smaller, the wheel will not seat on the hub without machining. Rings do not correct bolt pattern or offset differences.

• What is the largest wheel and tire I can fit without rubbing?

  It depends on suspension, brake package, wheel design, and tire model. Start from the OEM diameter near 29.7 in and use the calculator to model width and offset changes. Then test fit and check clearance at full steering lock and over bumps.

• What lug bolt length and seating should I use?

  Threads are M14 x 1.25. The seat type and required length depend on the wheel. Follow the wheel manufacturer’s guidance, and ensure engagement at least equivalent to the OEM hardware. Do not mix ball seat and conical seat hardware.

• What is the correct torque spec for the wheel bolts?

  Refer to the BMW owner manual or official service information for your VIN. Use a calibrated torque wrench and re-check after 50 to 100 miles. Do not rely on impact tools for final torque.

• Will changing wheel size affect my speedometer or driver aids?

  Yes. Significant changes in overall tire diameter can affect speedometer accuracy and driver assistance systems. Keep the overall diameter close to stock and verify with the calculator before buying.

This guide is informational. Always confirm final fitment using the on-page calculator and OEM sources for your exact trim and VIN.
