2017 Chrysler Pacifica Wheel Interchange

OEM wheel and tire fitment specs for the 2017 Chrysler Pacifica, including bolt pattern (PCD), center bore diameter, thread size, rim diameter, rim width, wheel offset, and backspacing.

2017 Chrysler Pacifica Fitment Specs

Baseline mounting dimensions used for interchange decisions.

Bolt Pattern5x127
Center Bore71.5 mm
Lug ThreadM12 x 1.5
OEM Wheel Sizes17" – 20"
OEM Widths7" – 8"
OEM Offset Range45 mm – 51 mm

Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.

Wheels That Interchange With a 2017 Chrysler Pacifica

Results are evaluated from bolt pattern, center bore direction, OEM width/offset envelope, and lug hardware – not bolt pattern alone.

Direct Fit

2018 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

2019 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

2020 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

2021 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

2022 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

2008 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Mounting dimensions align with known OEM fitment for this vehicle.

2007 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Mounting dimensions align with known OEM fitment for this vehicle.

2006 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Mounting dimensions align with known OEM fitment for this vehicle.

2005 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Mounting dimensions align with known OEM fitment for this vehicle.

2004 Chrysler Pacifica

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change -3 mm, inner change 3 mm vs mid OEM).

2020 Chrysler Voyager

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

2021 Chrysler Voyager

Direct Fit
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryCompatible with OEM envelope

Geometry within known OEM envelope (approx. outer change 3 mm, inner change -3 mm vs mid OEM).

Check Fitment

2023 Chrysler Pacifica

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match
  • Wheel geometryNot fully verified

Wheel width/offset data is incomplete.

2008 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2009 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2010 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2011 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2012 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2013 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2014 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2015 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

2016 Chrysler Town & Country

Check Fitment
  • Bolt pattern5x127 · Match
  • Center bore71.5 mm · Match

Donor width/offset sits outside the known OEM envelope for this vehicle.

Chrysler Pacifica Years With Compatible Wheels

Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.

Will Wheels From Another Vehicle Fit?

Compare a donor vehicle or custom wheel against this 2017 Chrysler Pacifica.

Compare

Compare wheel compatibility between two vehicles

Wheels from (donor vehicle)

Installed on (your vehicle)

Selected Car:

2017 Chrysler Pacifica

Compare Rims

Specification
Wheels from
Installed on
Result (Click it)
Bolt Pattern
Bolt Pattern
The total number of bolt holes and the diameter of the circle they form.
-
5x127
Center Bore
Center Bore
The hole in the center of the wheel that fits over the vehicle’s hub.
-
71.5 mm
Thread Size
Thread Size
The size and spacing of the threads on the bolts or nuts that hold the wheel in place.
-
M12 x 1.5
Rim Diameter
Rim Diameter
The wheel diameter in inches that determines which tire sizes will fit.
-
18"
Rim Width
Rim Width
The distance between the inner edges of the wheel is measured in inches.
-
7.5"
Wheel Offset
Wheel Offset
How far the wheel sits inward or outward relative to the hub mounting surface.
-
51 mm
Backspacing
Backspacing
Shows how much space the wheel takes up toward the inside of the vehicle.
-
-
Wheel Fasteners
Wheel Fasteners
The type of hardware used to secure the wheel to the vehicle.
-
-

Wheel Fitment Parts for the 2017 Chrysler Pacifica

Products below are matched to required fitment dimensions from our parts inventory. Confirm seat style, thickness, and clearance before ordering.

Lug Nuts / Wheel Bolts

M12 x 1.5

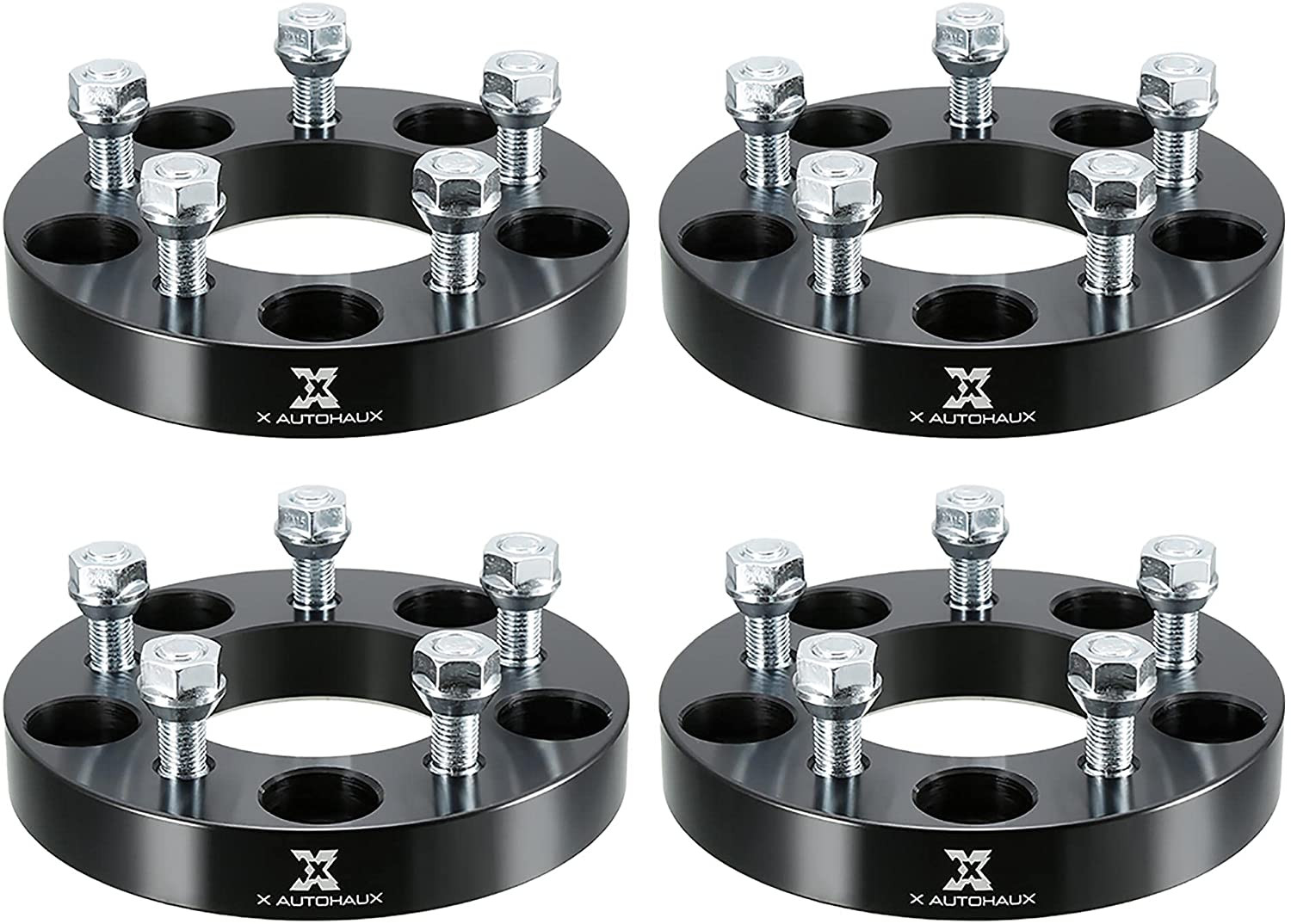

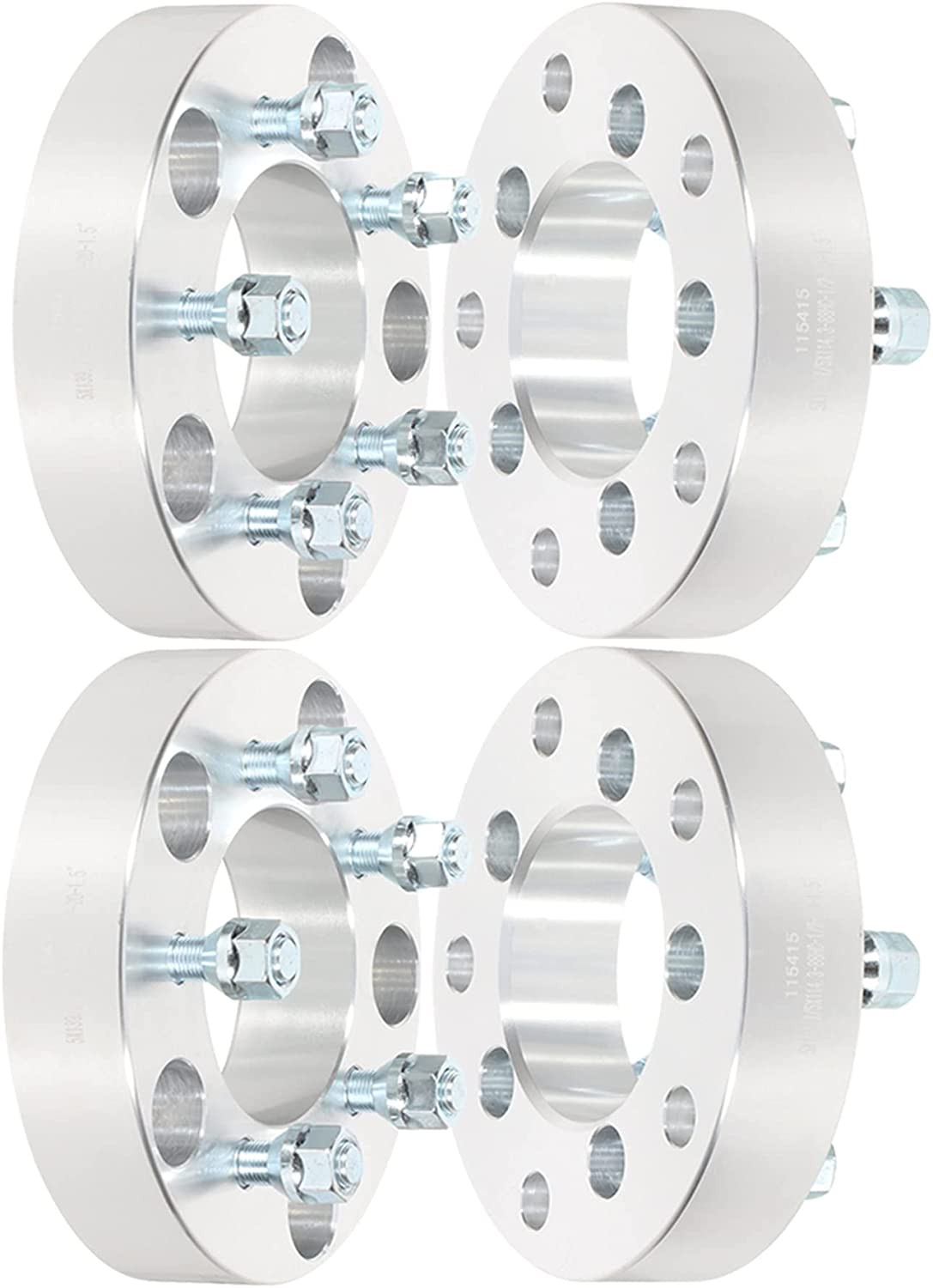

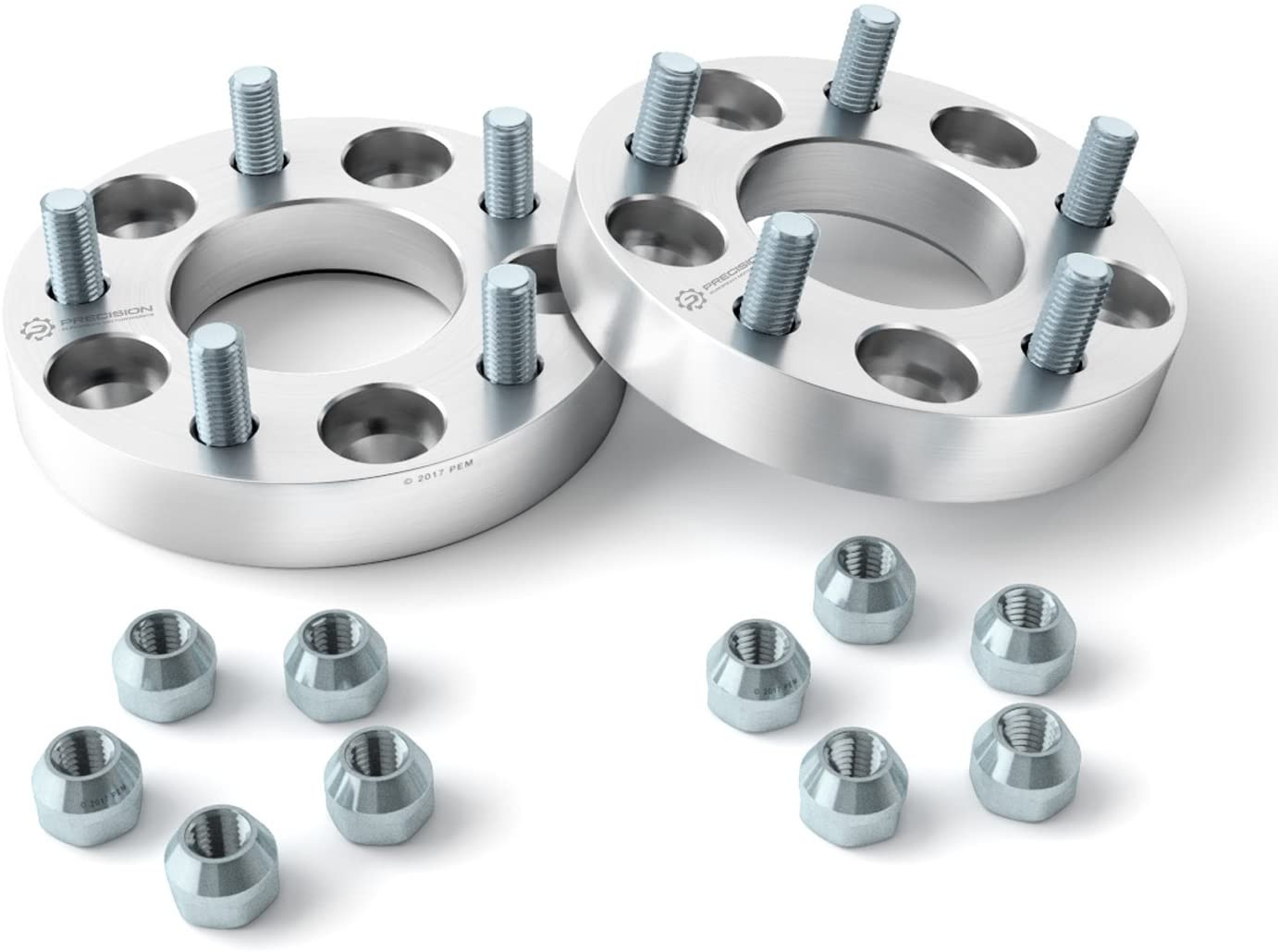

Wheel Adapters

5x127 · 71.5 mm hub

Directional bolt-pattern adapters. A spacer does not change PCD.

As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.

Why These Wheels Fit

Wheel interchange depends on more than bolt pattern. Where data is available, this site compares:

  • Bolt pattern / PCD
  • Center bore direction (donor wheel bore must not be smaller than the hub)
  • Wheel diameter, width, and offset against known OEM ranges
  • Lug thread / hardware differences (vehicle-side hardware)

A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.

2017 Chrysler Pacifica Wheel Fitment

Bolt Pattern5x127
Center Bore71.5 mm
Thread SizeM12 x 1.5
Rim Diameter18"
Rim Width7.5"
Wheel Offset51 mm

Use the calculator below to compare wheels from another vehicle against your 2017 Chrysler Pacifica, or check compatible donor vehicles that share the same bolt pattern and center bore.

Fitment Basics

  • Always confirm center bore matches your hub, or use hub-centric rings to take up the gap.
  • Check offset carefully – wheels that stick out too far can rub on fenders or suspension components.
  • Verify thread size and lug type before buying replacement bolts or lug nuts.
  • When in doubt, use the calculator below to compare exact specs side by side.
