Recorded OEM specifications for the 2000 Ford Explorer, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.
Baseline mounting dimensions used for interchange decisions.
Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.
Center-bore records disagree: year-level hub 70.6 mm vs trim range 70.5–70.5 mm. Interchange below does not treat this as an unqualified match.
Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.
These are vehicle-year records whose recorded OEM ranges overlap this 2000 Ford Explorer. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.
Evaluated 57 donor years. Listed 24 eligible overlaps (not all evaluated years are compatible). Showing all listed.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Dataset suggestionWheel spacer ≈ 22.18 mm – not a verified installation requirement.
A spacer of about 22.18 mm is a dataset suggestion only; clearance is not verified. Estimated outer position is about 22.18 mm farther inward than the mid OEM package.
Recorded vehicle-side thread for the 2000 Ford Explorer is 1/2"-20UNF. This donor year is recorded as M14x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Dataset suggestionWheel spacer ≈ 7.48 mm – not a verified installation requirement.
A spacer of about 7.48 mm is a dataset suggestion only; clearance is not verified. Estimated outer position is about 7.48 mm farther inward than the mid OEM package. Recorded vehicle-side thread differs (M14x1.5 on the donor year vs 1/2"-20UNF on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset.
Recorded vehicle-side thread for the 2000 Ford Explorer is 1/2"-20UNF. This donor year is recorded as M14x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Dataset suggestionWheel spacer ≈ 12.48 mm – not a verified installation requirement.
A spacer of about 12.48 mm is a dataset suggestion only; clearance is not verified. Estimated outer position is about 12.48 mm farther inward than the mid OEM package. Recorded vehicle-side thread differs (M14x1.5 on the donor year vs 1/2"-20UNF on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset.
Recorded vehicle-side thread for the 2000 Ford Explorer is 1/2"-20UNF. This donor year is recorded as M14x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Dataset suggestionWheel spacer ≈ 8.83 mm – not a verified installation requirement.
A spacer of about 8.83 mm is a dataset suggestion only; clearance is not verified. Estimated outer position is about 8.83 mm farther inward than the mid OEM package. Recorded vehicle-side thread differs (M14x1.5 on the donor year vs 1/2"-20UNF on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Center-bore records disagree (target year-level hub 70.6 mm vs trim range 70.5–70.5 mm; donor year-level hub 70.6 mm vs trim range 70.5–70.5 mm). Unqualified overlap is not claimed until the conflict is resolved. Approximate position vs the mid OEM package: outer change -4.18 mm, inner change -2.18 mm. This uses aggregated width/offset ranges, not a specific wheel.
Lug thread is not fully recorded for this comparison. Hardware must match the 2000 Ford Explorer studs and the selected wheel’s seat. Unknown hardware is not a match.
Bolt pattern data is incomplete for a full interchange decision.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Dataset suggestionWheel spacer ≈ 24.83 mm – not a verified installation requirement.
A spacer of about 24.83 mm is a dataset suggestion only; clearance is not verified. Estimated outer position is about 24.83 mm farther inward than the mid OEM package.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Dataset suggestionWheel spacer ≈ 9.48 mm – not a verified installation requirement.
A spacer of about 9.48 mm is a dataset suggestion only; clearance is not verified. Estimated outer position is about 9.48 mm farther inward than the mid OEM package.
Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.
Compare a donor vehicle or custom wheel against this 2000 Ford Explorer. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.
Compare wheel compatibility between two vehicles
2000 Ford Explorer
Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.
1/2" - 20 UNF
1/2" - 20 UNF · Thread match only; seat style is not verified
View on Amazon →
1/2" - 20 UNF · Thread match only; seat style is not verified
View on Amazon →
1/2" - 20 UNF · Thread match only; seat style is not verified
View on Amazon →5x114.3 · 70.5 mm hub

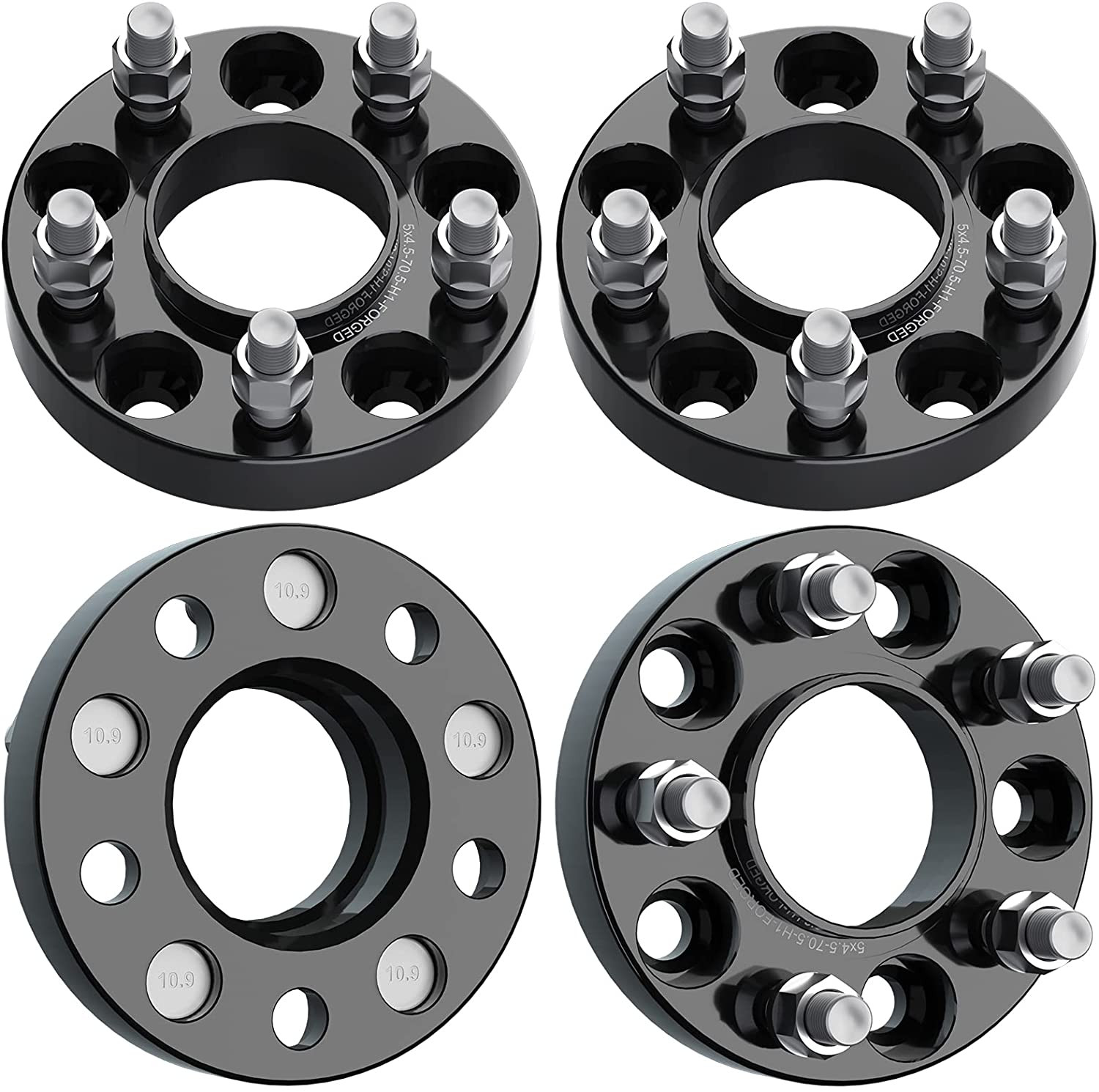

5x114.3 · 70.5 mm hub · 1 inch / 25 mm
View on Amazon →As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.
Use this page to review the supplied OEM wheel and tire information for the 2000 Ford Explorer. Fitment can vary by trim, drivetrain, production details, and replacement parts, so confirm every measurement before purchasing wheels or tires.
The following specifications are the known values provided for this vehicle. They should be treated as reference data, not as a substitute for checking the vehicle in person or verifying the OEM information for your specific Explorer.
| Specification | Known value |
|---|---|
| Bolt pattern | 5x114.3 |
| Center bore | 70.5 mm |
| Thread size | M12 x 1.5 |
| Rim diameter | 16 inches |
| Rim width | 7.0 inches |
| Wheel offset | ET 10 mm |
| Backspacing | 3.89 inches |
| Tire section width | 225 mm |
| Tire aspect ratio | 70% |
| Tire rim diameter | 15 inches |
There is a diameter conflict in the supplied data: the listed rim diameter is 16 inches, while the listed tire rim diameter is 15 inches. A tire with a 15-inch rim diameter cannot be mounted on a 16-inch wheel. Check the tire sidewall, wheel stamp, driver-door placard, owner documentation, and the calculator before ordering. Do not rely on a tire or wheel listing until this discrepancy is resolved.
Use the calculator to compare a donor wheel and tire setup with the wheel and tire installed on your 2000 Ford Explorer. Enter the donor vehicle or donor wheel information in “Wheels from” and enter the Explorer information in “Installed on.”
A calculator can identify dimensional differences, but it cannot confirm brake clearance, suspension clearance, fender clearance, load rating, tire pressure requirements, or whether a wheel is structurally suitable. Physical inspection and OEM or wheel-manufacturer documentation are still required.
Plus sizing changes the wheel diameter while attempting to maintain a similar overall tire diameter. The goal is to preserve speedometer behavior, gearing, ground clearance, and available suspension travel as closely as practical. The calculator can compare custom wheel diameter, width, and offset with custom tire section width and aspect ratio.
Do not assume that a larger wheel or wider tire will fit simply because the bolt pattern matches. A change in width or offset can move the inner sidewall closer to suspension components or move the outer sidewall closer to the fender. A lower aspect ratio can also reduce sidewall protection and change ride quality.
Because the supplied reference data contains both 15-inch tire and 16-inch wheel values, confirm the actual installed package before evaluating a plus-size setup. Use the door placard, tire sidewall, wheel markings, and OEM documentation as primary references. No specific upgrade size is guaranteed here without complete trim-specific clearance information.
Useful equipment includes a calibrated torque wrench, a suitable socket set, a wheel chock, a properly rated jack, jack stands, a tire pressure gauge, and a tread-depth or clearance measuring tool. Use the vehicle owner's manual for safe lifting points and never work beneath a vehicle supported only by a jack.
View automotive torque wrenches on Amazon
View automotive wheel chocks on Amazon
Does the 2000 Ford Explorer use a 5x114.3 bolt pattern?
The supplied OEM fitment data lists a 5x114.3 bolt pattern. Confirm the pattern against the vehicle and wheel documentation before purchase.
What center bore is listed for this Explorer?
The supplied center bore is 70.5 mm. A smaller wheel bore will not fit over the hub, and a larger bore may need properly sized hub-centric rings when approved by the wheel manufacturer.
What wheel offset and backspacing are listed?
The supplied reference values are ET 10 mm offset and 3.89 inches of backspacing for a 7.0-inch-wide wheel. Confirm these measurements on the wheel itself or in the wheel manufacturer's specifications.
Can the listed 15-inch tire be installed on the listed 16-inch rim?
No. The tire rim diameter must match the wheel diameter. The supplied data contains a 15-inch tire rim diameter and a 16-inch rim diameter, so the actual vehicle setup must be verified before ordering.
Will every 5x114.3 wheel fit this Explorer?
No. Bolt pattern is only one part of fitment. Center bore, width, offset, backspacing, brake clearance, load rating, lug seat, tire size, and body or suspension clearance must also be checked.
Can the calculator guarantee that a wheel will fit?
No. The calculator compares the entered dimensions and updates tire diameter when rim diameter changes, but it cannot physically verify brake, suspension, fender, load, or lug-hardware compatibility. Confirm results with an unloaded test fit and OEM or manufacturer sources.
Where can I confirm the correct tire size?
Check the driver-door or door-jamb tire placard, the owner's manual, the existing tire sidewall, and Ford or tire-manufacturer documentation for the specific vehicle. Resolve any disagreement before mounting tires.
Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:
A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
