2002 Ford F-350 Wheel Interchange

2002 Ford F-350 Wheel Fitment Guide | wheelinterchange.com

Known OEM Fitment For 2002 Ford F-350

Only verified values are shown below. Items marked Unknown vary by trim, SRW vs DRW, axle/brake package, and option codes. Do not assume–confirm with your door-jamb tire label, the owner’s manual, and OEM parts sources.

• SRW vs DRW: The F-350 was available as Single Rear Wheel and Dually. Wheels, offsets, and hardware differ. Never mix SRW and DRW wheels without confirming exact specs.
• Bolt patterns that do not fit: 8x6.5 and 8x200 are different from 8x170. Do not attempt to install mismatched patterns.
• How to confirm missing values:
  • Check your door-jamb Tire and Loading label for factory tire size, then use the on-page calculator to back into wheel size.
  • Use your VIN with a Ford dealer or OEM parts catalog to look up the original wheel part number and specifications.
  • Measure your current wheel if it is known to be original: width is measured bead-to-bead; backspacing is measured from hub pad to inner rim edge. Use the calculator to translate backspacing to offset.

How To Use The Wheel Interchange Calculator

The calculator helps you compare a prospective wheel/tire setup against your 2002 F-350 to predict clearance, poke, and diameter changes.

• Set “Installed on (your vehicle)” to 2002 Ford F-350.
• Use “Wheels from (donor vehicle)” to select a potential donor or manually enter a wheel using “Custom wheel size.”
• Enter Custom wheel size: rim diameter, rim width, and offset (ET). If you only know backspacing, enter it and let the calculator convert to offset.
• Enter Custom tire size: section width and aspect ratio. Changing rim diameter will update the calculated tire diameter in the comparison.
• Review results:
  • Outer poke change: how far the wheel moves toward the fender.
  • Inner clearance change: distance to suspension and inner fender/brakes.
  • Overall tire diameter change and speedometer error.
• Aim to keep overall tire diameter close to stock to minimize gearing and speedometer impact. If your stock tire size is unknown, use your door-jamb label or owner’s manual, then input that size as your baseline.

Fitment Checklist Before You Buy

• Bolt pattern: Must be 8x170 for the 2002 F-350.
• Center bore: OEM hub is 124.9 mm. Aftermarket wheels can be equal or larger. If larger, use proper hub-centric rings sized to your wheel’s bore and 124.9 mm hub.
• Thread size and seat type: Studs are M14 x 2.00. Match lug nut seat type (often 60-degree conical for many aftermarket wheels, but confirm with your wheel manufacturer).
• SRW vs DRW: Identify your axle type. Dually wheels typically have different offset and mounting arrangements and are not interchangeable with SRW without purpose-built parts.
• Brake clearance: Verify spoke/barrel clearance over calipers. Ask the wheel maker for a brake template if available.
• Load rating: Wheels and tires must meet or exceed the truck’s GAWR and GVWR. Check your door-jamb label.
• Offset/backspacing: Use the calculator to keep inner clearance safe and avoid excessive outer poke. Turn lock-to-lock and consider suspension compression.
• Tire diameter: Staying close to stock minimizes speedometer and ABS concerns. Larger diameters can affect towing performance and gearing.
• Stud engagement: Minimum thread engagement should be at least the diameter of the stud (about 14 mm of full thread for M14). If using spacers, extended studs may be required.
• TPMS: If your truck uses tire pressure sensors or you’ve retrofitted them, ensure wheel compatibility and perform a relearn after installation.

Plus Sizing And Common Upgrades

• Plus sizing street setups: Increase wheel diameter while using a lower-profile tire to keep overall tire diameter close to stock. Enter both sizes into the calculator and aim for minimal overall diameter change.
• Off-road/towing setups: Many owners prefer a slightly smaller wheel with a taller tire sidewall for compliance and protection. Use the calculator to verify inner clearance to suspension and outer fender clearance.
• Leveling or lift kits: If you plan a suspension change, confirm the kit’s recommended wheel specs and re-run the calculator with those values before buying wheels or tires.

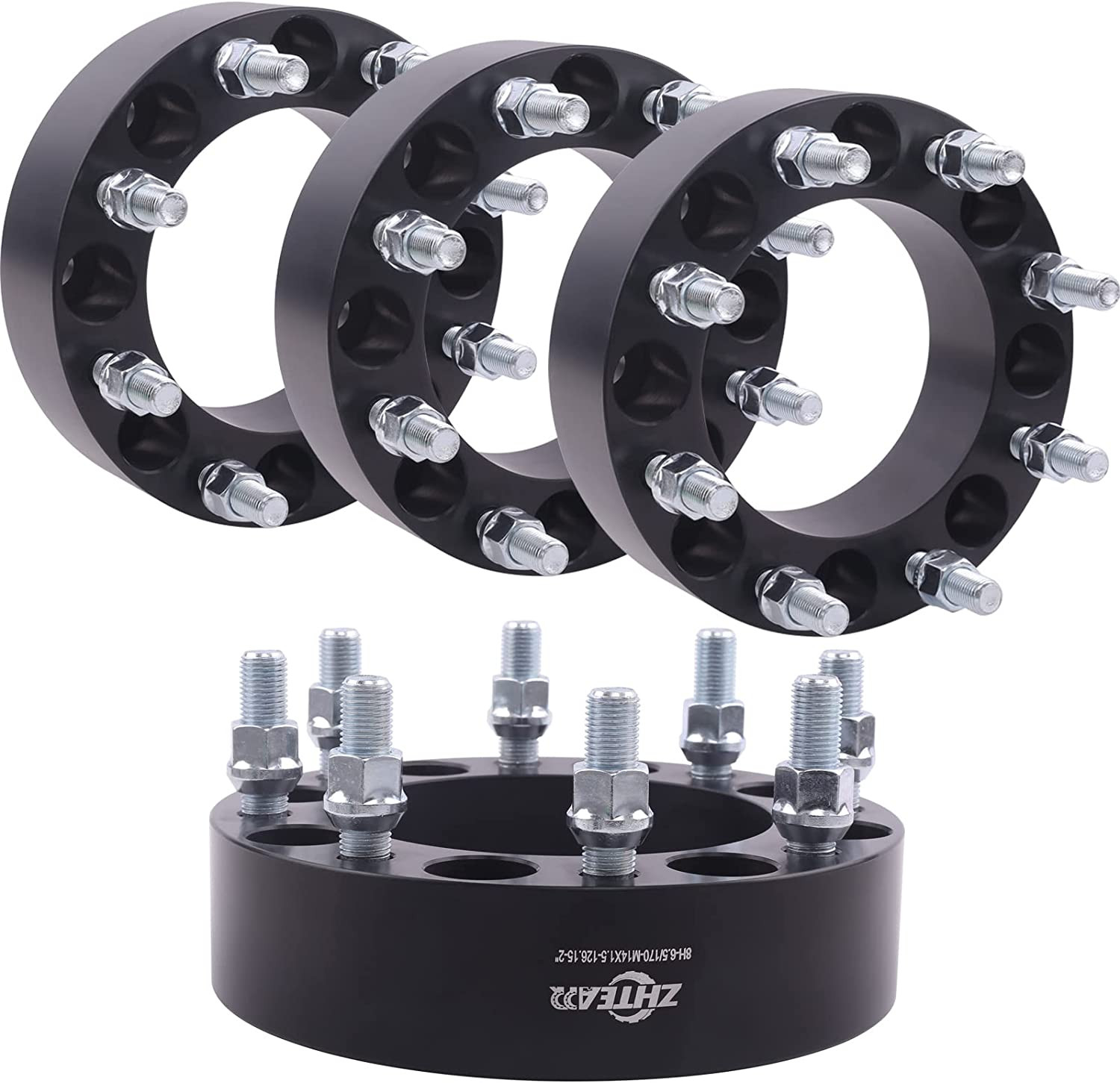

• Spacers/adapters: Use only high-quality, hub-centric spacers with correct 8x170 pattern and proper hub bore. Ensure adequate thread engagement or install longer studs. Recheck torque after 50–100 miles.
• Dually specifics: DRW rear wheels and front wheels are often different. Only use wheels engineered for dually applications.

Installation Tips

• Preparation: Park on level ground, chock wheels, and use rated jack stands. Loosen lugs slightly before lifting.
• Clean mounting surfaces: Remove rust and debris from the hub face and wheel mounting pad to ensure proper seating and minimize runout.
• Hub-centric rings: If required, install rings fully seated against the wheel’s center bore before mounting.
• Hand-start all lug nuts to avoid cross-threading. Tighten in a star pattern in stages.
• Torque spec: Refer to the owner’s manual or OEM service information for the correct torque for M14 x 2.00 studs on your specific trim. Use a calibrated torque wrench. Do not rely on an impact for final torque.
• Re-torque: Recheck lug nut torque after 50–100 miles and again after any spacer installation.
• Clearance check: With the truck on the ground, turn lock-to-lock and inspect inner fender, brake lines, sway bar, and leaf spring clearance. Check under compression if possible.
• Center caps and hubs: On 4x4 models with manual locking hubs, verify center caps do not interfere with hub operation.

Tools And Helpful Supplies

• 1/2 inch drive torque wrench
• M14x2.00 lug nuts (correct seat type)
• Wire brush for hub and rotor cleanup
• Anti-seize for hub centering surface (use sparingly, not on lug nut seats)

FAQs

• What is the bolt pattern on the 2002 Ford F-350?

  The verified bolt pattern is 8x170.

• Will 8x6.5 or 8x200 wheels fit my 2002 F-350?

  No. 8x6.5 and 8x200 are different patterns from 8x170 and will not fit safely.

• What is the center bore size?

  The hub bore is 124.9 mm. If an aftermarket wheel has a larger bore, use hub-centric rings sized to 124.9 mm.

• What offset do I need?

  The exact OEM offset varies by trim and SRW vs DRW and is not provided here. Confirm via your VIN with a Ford parts source, check the owner’s manual, or measure your current OEM wheels and use the on-page calculator to compare new wheels.

• Are SRW and DRW wheels interchangeable?

  Generally no. Dually wheels and SRW wheels differ in width, offset, and mounting arrangement. Use wheels designed for your axle type.

• What size tires can I run without rubbing?

  It depends on suspension height, trim, and wheel offset. Find your stock tire size on the door-jamb label, set it as baseline in the calculator, and compare candidate sizes. Inspect clearance at full lock and under compression.

• Do I need special lug nuts?

  The thread is M14 x 2.00. Match the seat type to your wheel (conical, mag, or spherical) and ensure proper shank length if required by the wheel design.

• What torque should I use on the lug nuts?

  Torque specifications vary. Refer to the owner’s manual or OEM service information for your specific trim and axle. Always use a torque wrench and re-torque after 50–100 miles.

• Can I use spacers or adapters?

  Use only high-quality, hub-centric spacers in the correct 8x170 pattern. Verify hub bore, ensure adequate thread engagement or install longer studs, and recheck torque after driving. Check local regulations before use.
