Recorded OEM specifications for the 2003 Ford Expedition, donor years with overlapping ranges, and a calculator to compare a selected wheel. Range overlap is not a guaranteed fit.
Baseline mounting dimensions used for interchange decisions.
Multiple OEM configurations exist for this vehicle. Fitment can vary by trim, brakes, and factory wheel package – confirm your exact setup before buying.
Center-bore records disagree: year-level hub 86.8 mm vs trim range 87.1–87.1 mm. Interchange below does not treat this as an unqualified match.
Thread-only product links are shopping examples, not verified fits. Seat style is not confirmed here. As an Amazon Associate we earn from qualifying purchases.
These are vehicle-year records whose recorded OEM ranges overlap this 2003 Ford Expedition. Overlap is not a guarantee that a specific wheel will install. Selected-wheel comparison is in the calculator below.
Evaluated 31 donor years. Listed 24 eligible overlaps (not all evaluated years are compatible). Showing all listed.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Center-bore records disagree (target year-level hub 86.8 mm vs trim range 87.1–87.1 mm; donor year-level hub 86.8 mm vs trim range 87.1–87.1 mm). Unqualified overlap is not claimed until the conflict is resolved.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Recorded vehicle-side thread for the 2003 Ford Expedition is M14x2.00. This donor year is recorded as M14x1.5. That is the vehicle stud/nut thread, not an intrinsic thread stamped on the wheel. Hardware must match this vehicle’s studs and the selected wheel’s seat and engagement. Existing hardware may be reusable if it already matches. Seat style is not in this dataset, so products are not a verified fit.
Donor width/offset sits outside the known OEM envelope for this vehicle. Recorded vehicle-side thread differs (M14x1.5 on the donor year vs M14x2.00 on the target vehicle). Hardware must match the target vehicle’s studs and the selected wheel’s seat. Existing hardware may be reusable if it already matches. Seat style is not confirmed in this dataset.
Years grouped because recorded compatibility evidence is equivalent. Each year keeps its own page.
Center-bore records disagree (target year-level hub 86.8 mm vs trim range 87.1–87.1 mm; donor year-level hub 86.5 mm vs trim range 87.1–87.1 mm). Unqualified overlap is not claimed until the conflict is resolved.
Only years with evidence-based interchange relationships are listed. Adjacent years are not assumed compatible.
Compare a donor vehicle or custom wheel against this 2003 Ford Expedition. Use Compare in calculator on a donor row above to fill the donor side of this same calculator.
Compare wheel compatibility between two vehicles
2003 Ford Expedition

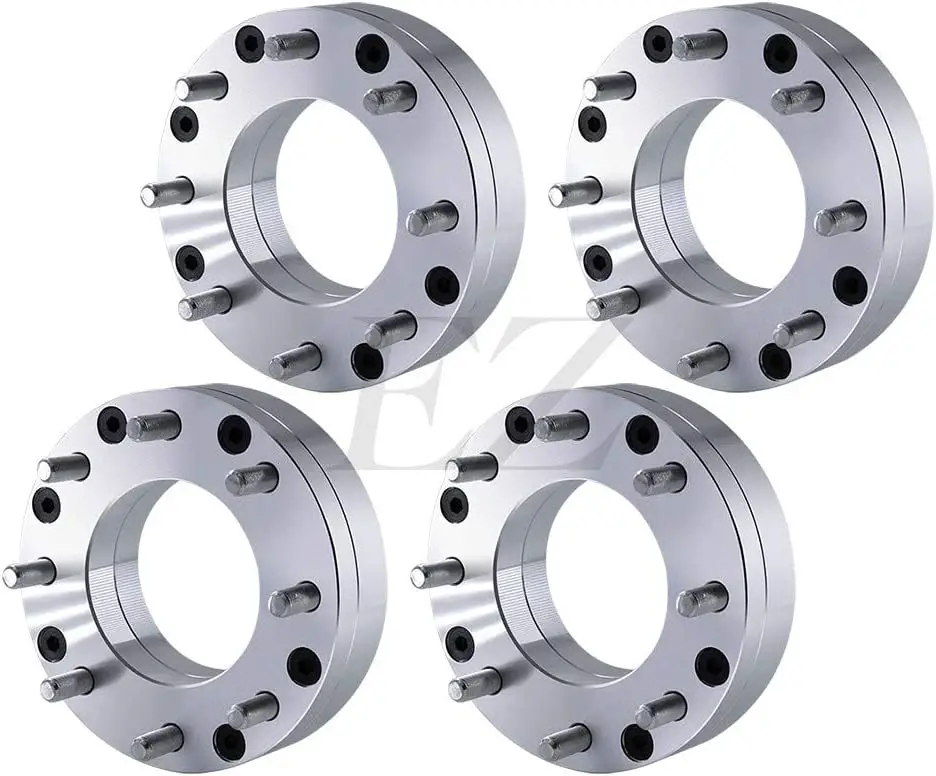

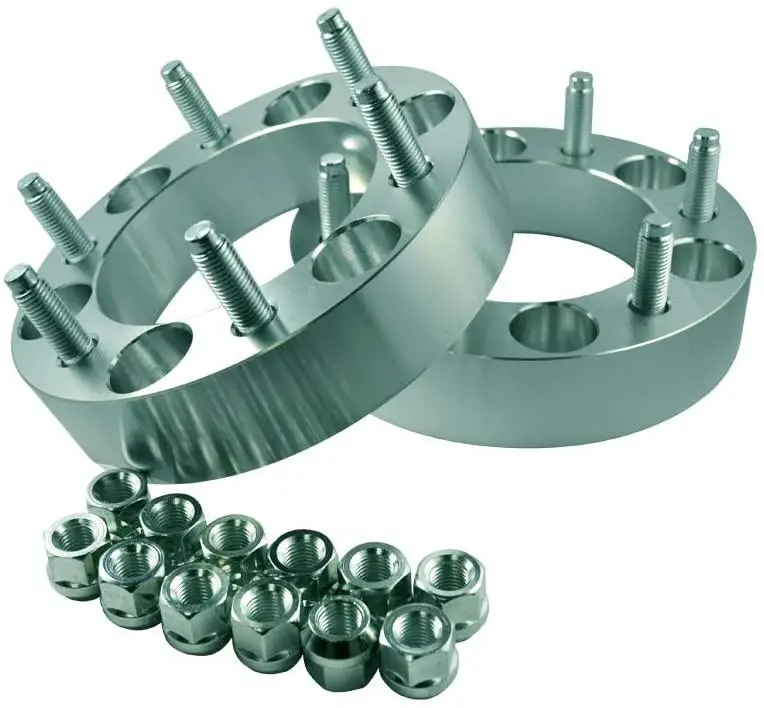

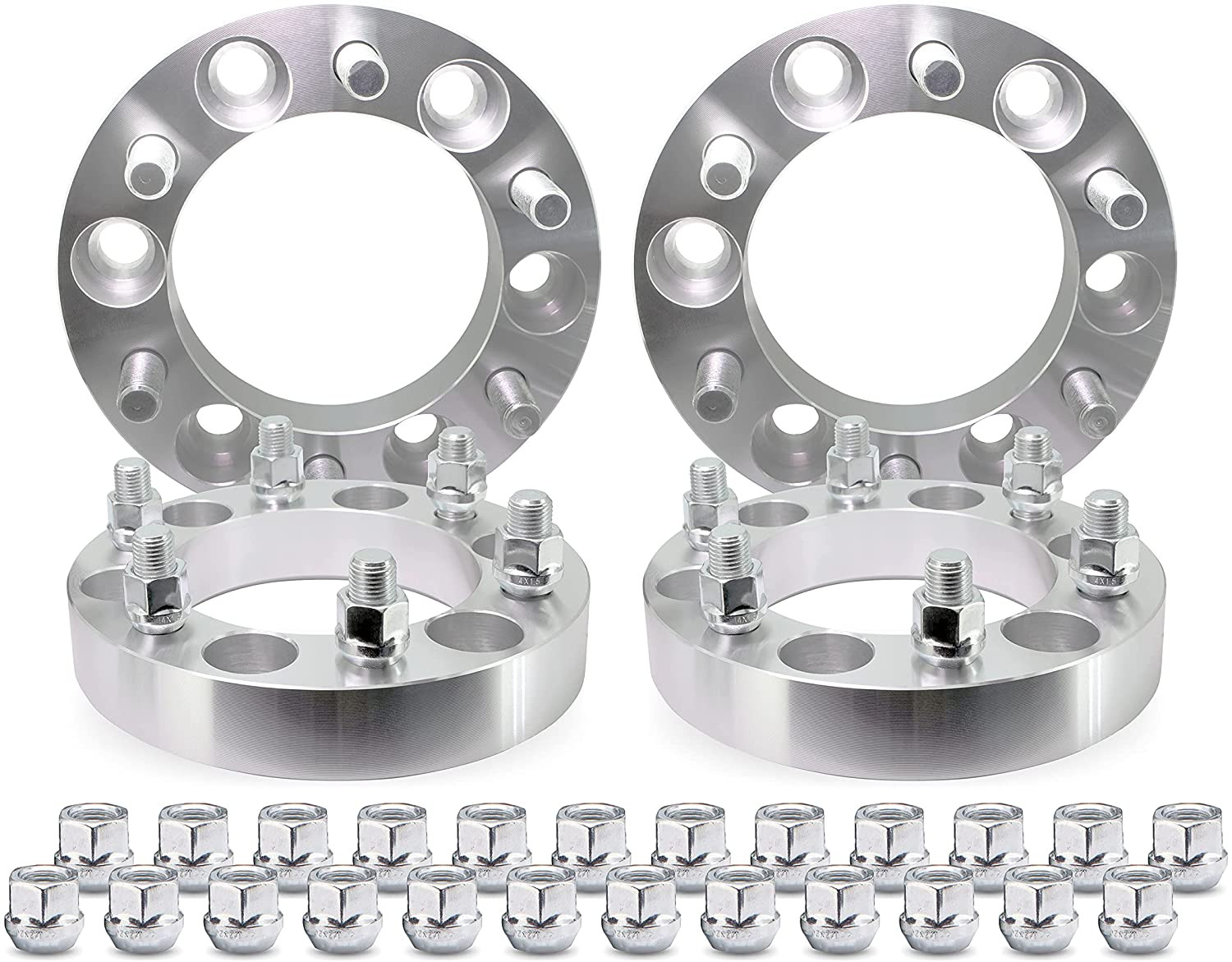

Example products matched to recorded thread, hub, or spacer dimensions. They are not verified fits. Confirm seat style, thickness, and clearance before ordering.
M14 x 2.00
M14 x 2.00 · Thread match only; seat style is not verified
View on Amazon →
M14 x 2.00 · Thread match only; seat style is not verified
View on Amazon →
M14 x 2.00 · Thread match only; seat style is not verified
View on Amazon →As an Amazon Associate we earn from qualifying purchases. Product availability and pricing may change.
This page summarizes the supplied wheel and tire fitment information for the 2003 Ford Expedition. Specifications can vary by trim, factory package, replacement wheel, and market, so confirm the vehicle-specific details before ordering. Use the wheel interchange calculator for comparisons, then verify critical dimensions with the vehicle door-jamb label, owner’s manual, service information, or a Ford parts source.
The following values are the known specifications provided for this application. They should not be treated as a complete trim-by-trim compatibility list.
| Specification | Known value |
|---|---|
| Bolt pattern | 6x135, meaning 6 studs on a 135 mm pitch circle diameter |
| Center bore | 87.1 mm |
| Thread size | M14 x 2.00 |
| Rim diameter | 17 inches |
| Rim width | 7.5 inches |
| Wheel offset | ET44, or 44 mm positive offset |
| Backspacing | 5.48 inches |
| Known tire size | 265/70R17 |
| Tire section width | 265 mm |
| Tire aspect ratio | 70 percent |
| Tire rim diameter | 17 inches |
The calculated overall diameter of a 265/70R17 tire is approximately 31.6 inches, before accounting for tread wear, inflation, and manufacturer variation. The supplied data does not identify every factory trim, brake package, tire load rating, or speed rating. Confirm those details before changing wheels or tires.
Use the calculator to compare a donor vehicle's wheels with the wheels installed on your 2003 Ford Expedition. Enter the donor vehicle information under “Wheels from” and the Expedition information under “Installed on.” Compare the bolt pattern, center bore, rim diameter, width, offset, and tire dimensions rather than relying on a single matching measurement.
The calculator also allows custom wheel and tire entries. Use “Custom wheel size” to test a different rim diameter, width, or offset. Use “Custom tire size” to test a different section width or aspect ratio. When you change rim diameter, the calculator updates the tire diameter comparison, which helps identify changes in overall height and speedometer-related diameter.
A calculator result is a screening tool, not a substitute for a physical test fit or OEM confirmation. A wheel can match the bolt pattern and still contact the brake caliper, suspension, hub, fender, or steering components. Recheck the result against the exact wheel part number and the vehicle's measured clearances.
Confirm the 6x135 bolt pattern and make sure the wheel's center bore is appropriate for the 87.1 mm hub. A smaller center bore will not fit over the hub. A larger bore may require correctly sized hub-centric rings when appropriate, but rings do not correct an incorrect bolt pattern, offset, wheel width, or load rating.
Compare the proposed wheel's diameter, width, offset, and backspacing with the known 17 x 7.5 wheel, ET44 offset, and 5.48-inch backspacing. Offset and backspacing affect how close the wheel sits to suspension parts on the inside and to the fender on the outside.
Confirm that the replacement tire is approved for the wheel width and has adequate load capacity and speed rating for the Expedition. The supplied information does not include the required vehicle load rating or every trim's tire specification, so verify those values on the door-jamb label, in the owner’s manual, and on the tire manufacturer's data.
Ask the seller for the exact wheel width, offset, center bore, bolt pattern, load rating, lug-seat style, and part number. Do not rely only on a photograph or a generic vehicle fitment statement. Check return terms in case a physical test fit reveals interference.
Plus sizing generally means increasing wheel diameter while reducing tire sidewall height to keep overall tire diameter near the original value. The calculator can compare custom rim diameter, width, offset, section width, and aspect ratio, but it cannot confirm every physical clearance or tire manufacturer restriction.
A larger wheel may alter ride comfort, steering response, tire cost, curb vulnerability, and clearance. A wider tire can increase the chance of contact with suspension components, inner liners, or fenders, especially at full steering lock or when the suspension is compressed.
Do not assume that a smaller sidewall or wider tire is an upgrade for every Expedition. Preserve adequate load capacity, use a tire approved for the selected wheel width, and maintain an overall diameter that is appropriate for the vehicle. If the replacement diameter differs materially, speedometer, gearing, ground clearance, and vehicle-system behavior may be affected.
Before installation, clean rust, dirt, and paint buildup from the hub and wheel mounting surfaces. Test-fit one front and one rear wheel when possible. Rotate the wheel by hand and check for brake-caliper, suspension, and inner-liner clearance. With the vehicle safely supported, check clearance at steering lock and after lowering the vehicle to the ground.
Use lug nuts that match the wheel's specified seat type and the vehicle's M14 x 2.00 thread. Thread engagement, lug-seat shape, and stud or nut compatibility must be verified for the exact wheel. Never force a mismatched lug nut onto the studs.
Install wheels with a calibrated torque wrench using the vehicle or wheel manufacturer's specified torque. The correct torque value was not provided here, so do not guess it. Tighten in a star pattern, lower the vehicle, and recheck torque after the initial drive and again according to the wheel manufacturer's instructions.
After installation, check tire pressure using the vehicle's recommended cold-pressure information, not the maximum pressure molded on the tire sidewall. Recheck for vibration, rubbing, loose hardware, and air loss before normal driving.
A calibrated automotive torque wrench is useful for tightening wheel hardware accurately. A wheel fitment measuring tool or straightedge and ruler can help verify backspacing and clearance during a test fit.
Other useful supplies include a floor jack rated for the vehicle, jack stands, wheel chocks, a properly sized socket, a tire-pressure gauge, a wire brush for hub-cleaning work, and a flashlight. Use jack stands on a firm, level surface and never work beneath a vehicle supported only by a jack.
What is the bolt pattern for the 2003 Ford Expedition?
The known bolt pattern is 6x135. Confirm it against the exact vehicle and wheel part number before purchase.
What is the center bore?
The supplied center-bore specification is 87.1 mm. A wheel with a smaller bore will not fit over the hub. A larger bore may need an appropriate hub-centric solution, depending on the wheel and application.
What wheel size is listed?
The known wheel specification is 17 inches in diameter by 7.5 inches wide, with ET44 offset and 5.48-inch backspacing. Trim or replacement-wheel differences should be verified through OEM sources.
What tire size is listed?
The supplied tire size is 265/70R17. Tire load capacity, speed rating, and exact factory application were not provided, so check the door-jamb label, owner’s manual, and tire manufacturer information.
Can I use any wheel with a 6x135 bolt pattern?
No. Bolt pattern is only one part of fitment. Center bore, offset, backspacing, width, brake clearance, lug-seat design, load rating, and tire compatibility must also match.
How can I check whether a donor wheel will fit?
Enter the donor vehicle under “Wheels from” and the 2003 Ford Expedition under “Installed on” in the calculator. Compare all listed dimensions, then confirm the exact wheel specifications and perform a careful physical test fit.
Will changing the wheel diameter change tire diameter?
It can. The calculator updates the tire-diameter comparison when you change rim diameter. Select a compatible tire aspect ratio and verify the resulting overall diameter, clearance, load rating, and speedometer implications.
What should I do if the calculator does not show a definitive result?
Treat the result as unconfirmed. Check the vehicle identification information, door-jamb label, owner’s manual, Ford service or parts sources, and the wheel manufacturer's specifications. When measurements remain uncertain, have a qualified tire or wheel technician inspect the vehicle before purchase.
Wheel interchange depends on more than bolt pattern. Where data is available, this site compares recorded OEM values:
A normal wheel spacer does not change bolt pattern. Hub rings cannot enlarge a wheel bore that is smaller than the hub. Brake clearance and tire package fitment still require vehicle-specific checks when not confirmed in the dataset.
